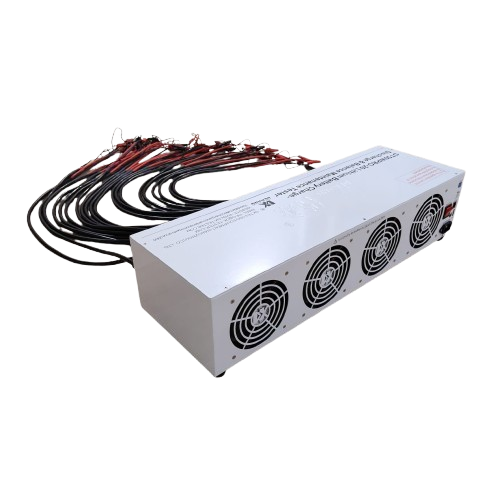

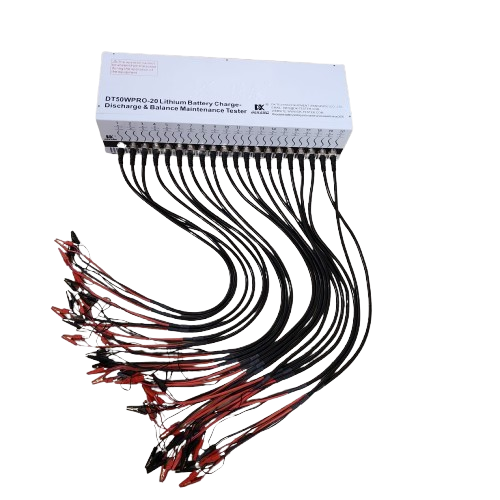

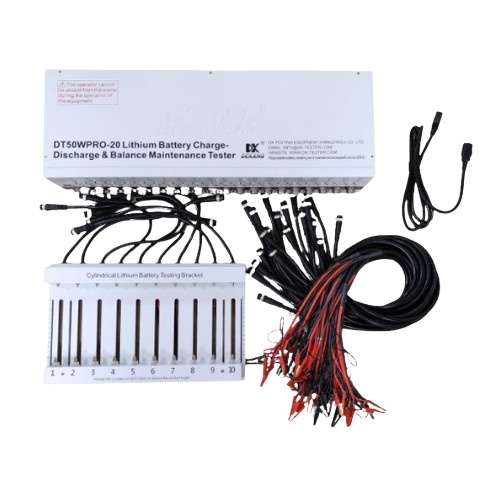

The DT50WPRO-20 is a state-of-the-art lithium battery tester designed for cell aging analysis, balancing maintenance, and capacity grading. This 20-channel device is engineered to optimize the performance and lifespan of lithium-ion battery packs by ensuring uniform voltage levels across all cells, thereby preventing issues related to imbalances.

Key Features

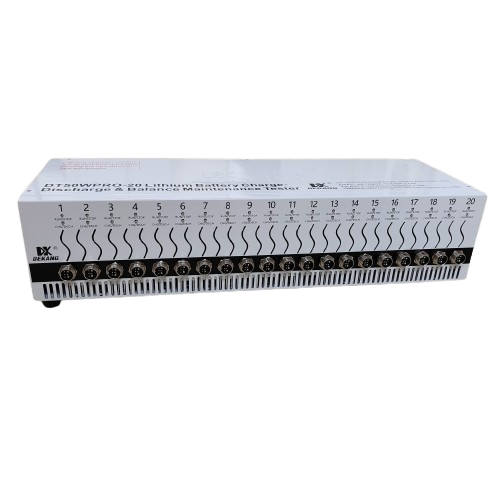

• 20 Independent Channels: Each channel operates independently, allowing simultaneous testing of up to 20 cells.
• Adjustable Voltage Range: Supports a voltage range from 1V to 5V, accommodating various lithium battery configurations.
• High Precision: Offers voltage accuracy of ±0.02V and current accuracy of ±0.02A, ensuring reliable test results.
• Modular Design: The modular structure enables flexible combinations, allowing multiple units to be integrated into a testing cabinet for efficient and rapid testing of entire battery packs.
• High Voltage Insulation: Provides AC1000V/2min insulation between channels, ensuring safety during operation.
• Comprehensive Testing Modes:
• Charge Modes: Constant current, constant voltage, and constant current & voltage charging.
• Discharge Modes: Constant current, constant power, and constant resistance discharging.
• Data Recording: Records data based on time, voltage, current, and capacity intervals, facilitating detailed analysis.
• Protection Mechanisms: Equipped with power-down protection, reverse connection protection, over-temperature protection, over-voltage protection, and short-circuit protection to ensure safe operation.
