BMS NMC 7S 60A JBD (ZP10S036) (11ada)

BMS NMC 7S 60A JBD (ZP10S036) (11ada)

BMS NMC 7S 60A JBD (ZP10S036) (11ada) is a robust battery management system designed for 7‑series lithium‑ion (NMC/Li‑ion) battery packs with ~24 V nominal voltage. It supports 60 A continuous current, provides passive cell balancing, and includes essential safety protections for moderate‑power applications.

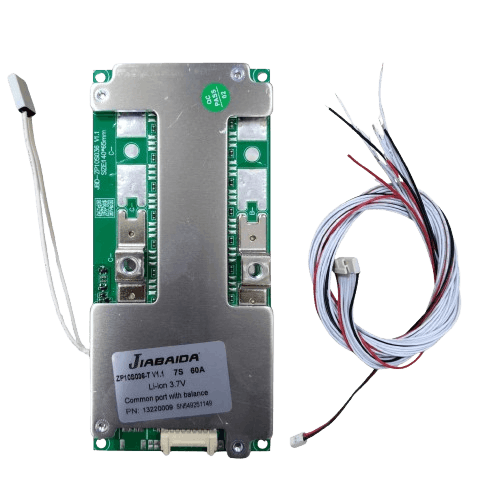

The BMS NMC 7S 60A JBD (ZP10S036) (11ada) is a compact and reliable battery protection system from JBD (Jiabaida), engineered specifically for 7‑cell lithium‑ion battery configurations (nominal ~25.9 V) used in portable and medium‑power energy systems.

This hardware BMS delivers 60 A continuous charge/discharge handling suitable for applications like e‑bikes, scooters, portable power stations, solar setups, and industrial battery packs. It features common‑port wiring with passive cell balancing to help equalize individual cell voltages and improve overall battery life.

🔋 Key Features

• 7S Lithium‑ion / NMC Support — Designed for seven cells in series (~24–29 V systems)
• 60 A Continuous Current — Stable performance for moderate‑high load applications
• Cell Balancing — Passive balance function to maintain equal cell voltages
• Common Port Design — ONE port for charging and discharging simplifies installation
• External Temperature Sensor Support — Monitors temp for enhanced safety
• Essential Protection — Overcharge, over‑discharge, overcurrent, short‑circuit & temperature protections (typical for this class)
