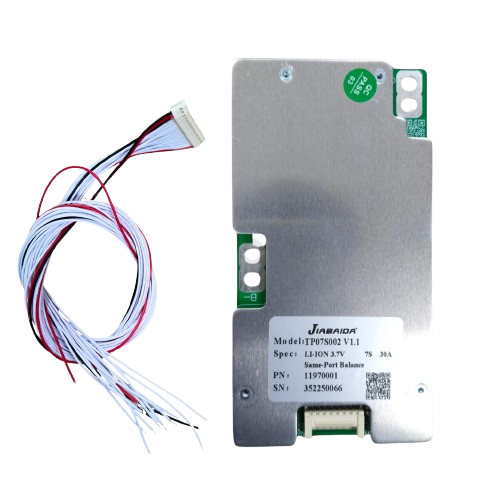

BMS NMC 7S 30A JBD (TP07S002) (1122k)

BMS NMC 7S 30A JBD (TP07S002) (1122k)

BMS NMC 7S 30A JBD (TP07S002) (1122k) is a compact smart battery management system designed for 7S lithium-ion (NMC) battery packs. It supports 30A continuous current, offers advanced protection features, and ensures safe, balanced, and efficient battery performance for portable and medium-power applications.

The BMS NMC 7S 30A JBD (TP07S002) (1122k) is a high-quality battery management system engineered for 7-series (7S) lithium-ion / NMC battery packs. Built with JBD (Jiabaida) technology, it provides reliable protection, accurate monitoring, and efficient battery operation.

Designed for 24V–25.9V battery systems, this BMS supports 30A continuous charge and discharge current, making it ideal for applications like e-bikes, portable power systems, solar lighting, and backup battery packs.

🔋 Key Features

• 7S Lithium-ion (NMC) Support
  Optimized for 3.7V cells (~25.9V nominal system)
• 30A Continuous Current
  Handles higher loads compared to 20A variants
• Advanced Protection System

  1. Overcharge protection (~4.2–4.25V/cell)

  2. Over-discharge protection (~2.7–2.8V/cell)

  3. Overcurrent protection

  4. Short circuit protection

  5. Temperature protection (NTC supported)

• Smart Cell Balancing
  Maintains equal voltage across all cells to improve battery life
• Common Port Design
  Single port for charging and discharging simplifies wiring
• Smart Monitoring (Variant dependent)
  Optional Bluetooth/UART support for real-time monitoring
• Compact & Efficient Design
  Small PCB size with low standby current
