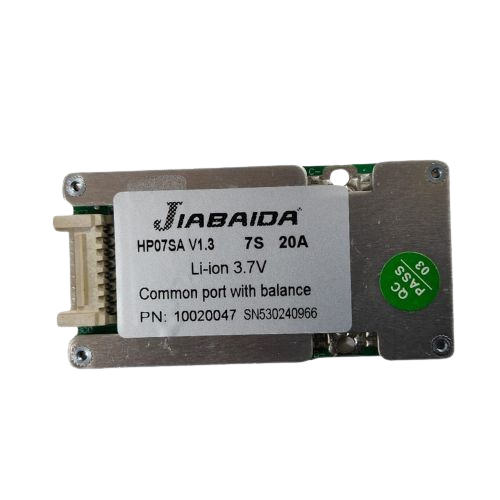

BMS NMC 7S 20A JBD (HP07SA) (543j)

BMS NMC 7S 20A JBD (HP07SA) (543j)

BMS NMC 7S 20A JBD (HP07SA) (543j) is a compact and reliable battery management system designed for 7S lithium-ion (NMC) battery packs. It supports 20A continuous current and provides essential protection features and cell balancing, making it ideal for portable and medium-power applications.

The BMS NMC 7S 20A JBD (HP07SA) (543j) is a high-quality battery management system developed for 7-series (7S) lithium-ion / NMC battery packs. Designed by JBD (Jiabaida), this model ensures safe, stable, and efficient battery operation for small to medium power systems.

With a nominal voltage of ~25.9V (max 29.4V) and 20A continuous current capability, this BMS is ideal for applications such as portable energy storage, e-bikes, power tools, and backup battery systems.

🔋 Key Features

• 7S NMC Compatibility
  Designed for 3.7V lithium-ion cells (~24V system)
• 20A Continuous Current
  Suitable for moderate load applications
• Advanced Protection System

  1. Overcharge protection (~4.25V/cell)

  2. Over-discharge protection (~2.8V/cell)

  3. Overcurrent protection

  4. Short circuit protection

  5. Temperature protection

• Passive Cell Balancing
  Maintains equal voltage across all 7 cells, improving battery life
• Common Port Design
  Single port for both charging and discharging simplifies wiring
• Ultra-Low Power Consumption
  Standby current ≤50µA for energy efficiency
• Compact & Lightweight
  Small PCB size for easy integration in tight spaces
