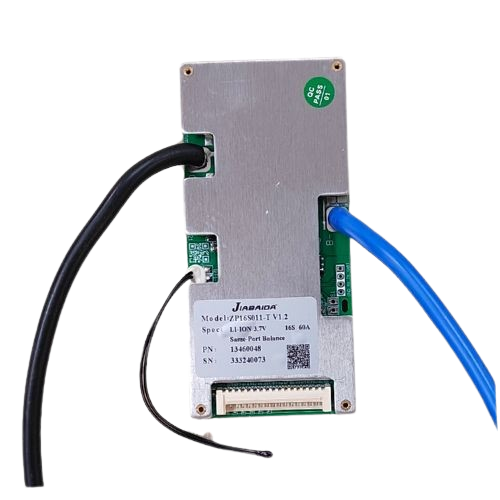

BMS NMC 16S 60A JBD (ZP16S011) (1541)

BMS NMC 16S 60A JBD (ZP16S011) (1541)

The JBD NMC 16S 60A BMS (model ZP16S011 / 1541) is a high-efficiency smart battery management system designed for 60V lithium-ion (NMC) battery packs. Supporting 16-series (16S) cell configurations, this BMS is widely used in electric vehicles, solar energy storage systems, and medium-to-high power battery applications.

This BMS provides advanced protection and real-time monitoring, ensuring safe and reliable battery operation. It continuously tracks individual cell voltages, pack current, and temperature, preventing issues such as overcharge, deep discharge, overcurrent, short circuits, and overheating.

The system features automatic passive balancing, which equalizes the voltage across all cells during charging. This helps improve battery efficiency, prevents imbalance, and extends overall battery lifespan.

With a 60A continuous current capacity, this BMS is suitable for demanding applications like electric scooters, e-bikes, solar storage systems, UPS, and DIY battery packs. Its robust construction includes high-quality MOSFETs, low internal resistance design, and efficient thermal management, ensuring stable performance under heavy loads.

JBD smart BMS variants support UART communication, RS485, CAN, and optional Bluetooth connectivity, allowing users to monitor battery data in real time through mobile apps or PC software. Parameters such as protection limits and performance settings can also be customized.

⚖️ Balancing

• Balancing Type: Passive balancing
• Balance Current: ~50–80mA
• Balance Start Voltage: ~4.18V

🛡️ Protection Features

• Overcharge protection: ~4.20–4.25V per cell
• Over-discharge protection: ~2.7–2.9V per cell
• Overcurrent protection
• Short-circuit protection
• Temperature protection (high & low cutoff)
• Cell voltage monitoring

🌡️ Temperature Specifications

• Charge Temperature: 0°C to 45°C
• Discharge Temperature: -20°C to 60°C
• Storage Temperature: -20°C to 70°C

🔌 Smart Features

• UART communication (standard)
• RS485 / CAN support (model dependent)
• Bluetooth module (optional)
• Mobile app monitoring (JBD Smart BMS app)
• SOC (State of Charge) estimation
• Adjustable protection parameters
