BMS NMC 14S 60A JBD (ZP16S011) (654t)

BMS NMC 14S 60A JBD (ZP16S011) (654t)

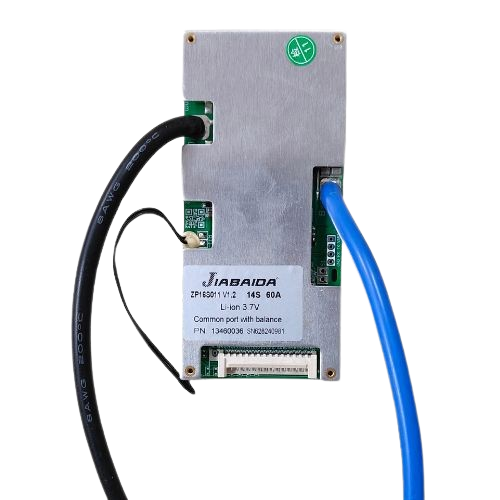

The JBD NMC 14S 60A BMS (model ZP16S011 / 654T) is a high-performance smart battery management system designed for 52V lithium-ion (NMC) battery packs. It supports 14-series (14S) configurations, making it ideal for electric vehicles, solar energy storage systems, and medium-to-high power lithium battery applications.

This BMS features advanced battery monitoring and protection technology, ensuring safe and efficient operation. It continuously monitors individual cell voltages, pack current, and temperature, preventing damage caused by overcharging, deep discharge, overheating, or short circuits.

The system includes intelligent passive balancing, which equalizes cell voltages during charging to improve battery lifespan and performance. With a 60A continuous charge/discharge capacity, it is suitable for demanding applications such as electric scooters, e-bikes, solar storage, UPS systems, and DIY battery packs.

JBD smart BMS models support UART, RS485, and optional Bluetooth communication, enabling real-time monitoring through mobile apps or PC software. Users can track voltage, current, temperature, and SOC (State of Charge) and adjust protection parameters.

Built with high-quality MOSFETs, low-resistance circuitry, and durable FR-4 PCB material, this BMS ensures stable performance, efficient heat dissipation, and long-term reliability even under heavy load conditions.

⚖️ Balancing

• Balancing Type: Passive balancing
• Balance Voltage: ~4.18V per cell
• Balance Current: 60–80mA

🛡️ Protection Features

• Overcharge protection (~4.25V/cell)
• Over-discharge protection (~2.8V/cell)
• Overcurrent protection
• Short-circuit protection
• Temperature protection (OTP & low temp cutoff)

🌡️ Temperature Specifications

• Operating Temperature: -20°C to +70°C
• Storage/Max Range: up to ~75°C

🔌 Smart Features

• UART communication (standard)
• RS485 support
• Bluetooth (optional module)
• Real-time monitoring via mobile app / PC
• SOC estimation & parameter configuration
