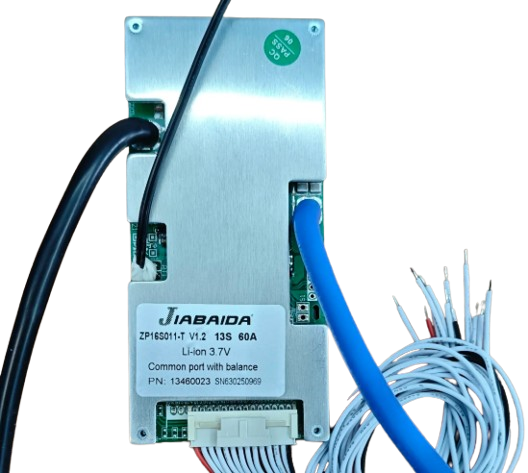

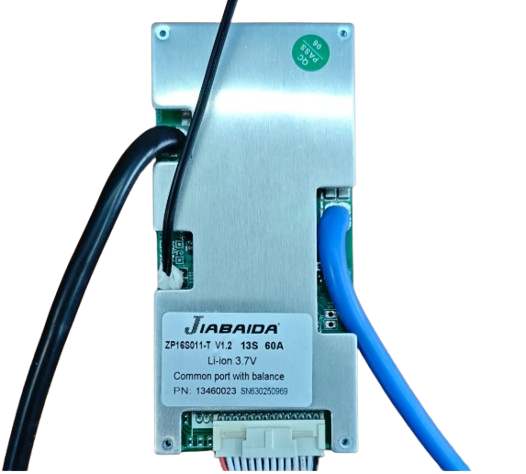

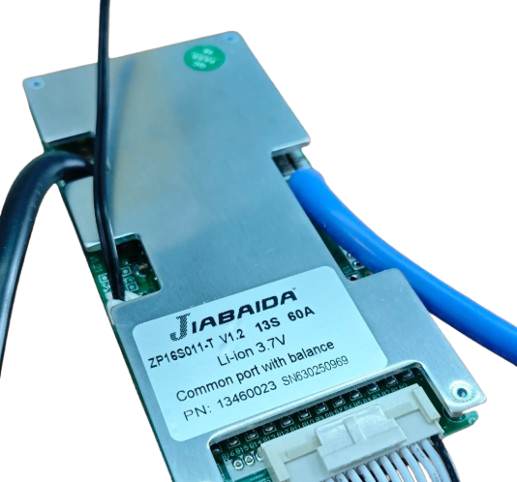

BMS NMC 13S 60A JBD (ZP16S011) (2442)

Rated 0 out of 5

(0 Reviews) Write a review

Battery Type: Lithium-ion (NMC)
Configuration: 13S (48.1V nominal / 54.6V full charge)
Continuous Current: 60A (charge & discharge)
Peak Current: ~80–100A (short duration)
Charging Current: Up to 30A (recommended)
Overcharge Protection: ~4.25V per cell
Over-discharge Protection: ~2.8V per cell
Balancing Type: Passive balancing
Balance Current: ~60mA
Internal Resistance: ≤15mΩ
Idle Current: ≤60µA
Port Type: Common port (same for charge & discharge)
Operating Temperature: -20°C to +75°C

(Save ₹1,678.00)

In stock

Categories: JBD BMS

Description

BMS NMC 13S 60A JBD (ZP16S011) (2442)

BMS NMC 13S 60A JBD (ZP16S011) is a high-power battery management system designed for 48V (13S) lithium-ion/NMC battery packs, offering 60A continuous current, intelligent cell balancing, and advanced protection features for safe and efficient battery performance.

The BMS NMC 13S 60A JBD (ZP16S011) is a robust hardware-based battery protection board engineered for 13-series (48V nominal) lithium-ion/NMC battery systems. It is designed for high-load applications, ensuring stable operation by continuously monitoring cell voltages, current, and temperature.

With 60A continuous discharge capability, this BMS is ideal for electric vehicles, solar storage systems, inverters, and high-power DIY battery packs, delivering reliable performance and enhanced battery lifespan.

More Info

🔒 Protection Features

Overcharge protection
Over-discharge protection
Overcurrent protection
Short circuit protection
Temperature protection (NTC sensor supported)
Pre-charge & soft-start function for safe startup

⚡ Key Features

High current support (ideal for heavy load applications)
Accurate voltage monitoring for each cell
Passive balancing improves battery lifespan
Low power consumption design
Compact PCB with durable build
Optional UART / RS485 / Bluetooth monitoring support

🔌 Applications

Electric bikes / scooters (E-bike, EV)
Solar energy storage systems
Inverter & UPS backup systems
Powerwall / DIY lithium battery packs
Industrial battery systems

✅ Advantages

Supports higher load (60A) than 40A & 50A models
Improves battery safety and efficiency
Extends battery life with balancing
Reliable for high-power and continuous usage
