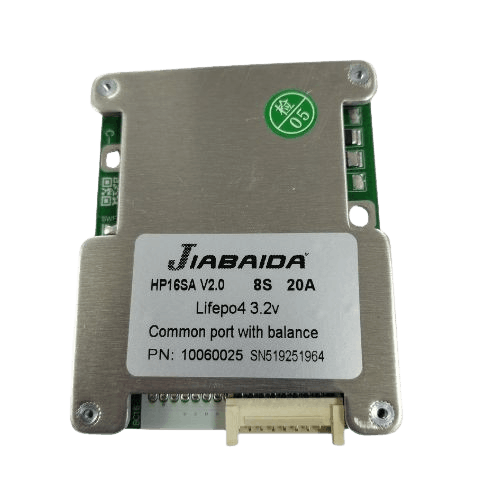

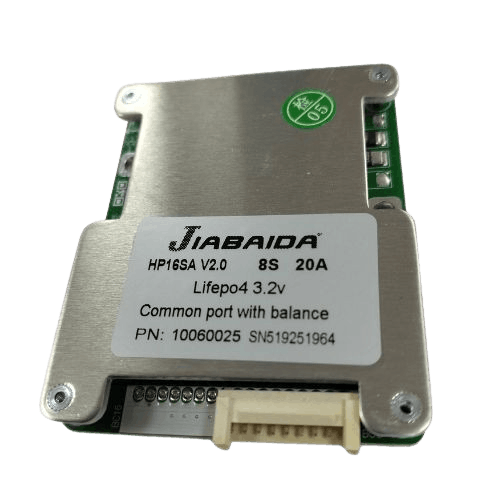

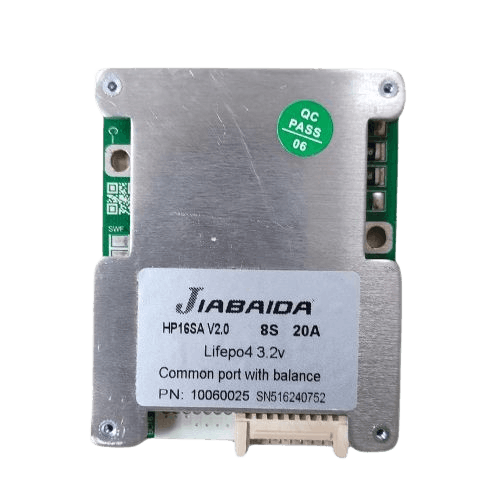

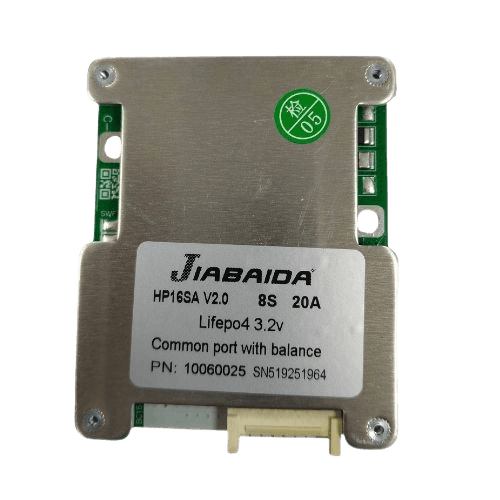

BMS LFP 8S 20A JBD (HP16SA) (5359)
BMS LFP 8S 20A JBD (HP16SA) is a battery management system designed for 8-series LiFePO4 (25.6V) battery packs. It supports 20A continuous discharge current and includes passive cell balancing with multiple safety protections such as over-charge, over-discharge, over-current, short-circuit, and temperature protection. Suitable for 24V lithium battery packs, solar energy storage, inverter batteries, and DIY battery projects.
The JBD HP16SA 8S 20A BMS is a compact and reliable battery protection board designed for 8-series LiFePO4 battery packs with a nominal voltage of 25.6V. It monitors the voltage of each individual cell, the battery current, and temperature to maintain safe operation and extend the life of the battery pack.
This BMS supports 20A continuous discharge current and up to 10A charging current, making it suitable for moderate-power lithium battery applications such as solar storage batteries, portable power systems, electric cycles, and inverter battery packs.
The board features passive cell balancing (about 30–50mA), which equalizes the voltage between cells during charging. This balancing helps improve battery performance, maintain stability, and increase the overall lifespan of the battery pack.““““`
