Lithium battery cell

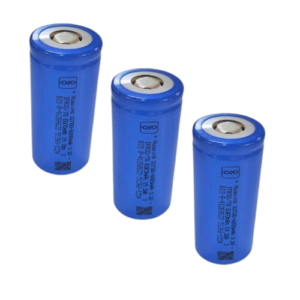

CELL 6 Ah HX SOLAR 32700 (1213)
- Model: 32700
- Nominal Voltage: 3.2V
- Nominal Capacity: 6Ah (6000mAh)
- Charge Voltage: 3.65V
- Discharge Cut-off Voltage: 2.5V
- Cycle Life: >2,000 cycles (80% DOD)
- Max Charge Current: 1C (6A)
- Max Discharge Current: 3C (18A)
- Peak Discharge Current: 5C (30A)
- Internal Resistance: ≤8mΩ
- Dimensions: 32mm x 70mm
- Weight: Approximately 145g
CELL HIGHSTAR 100 Ah (1abc)
- Model: IFPP40130220
- Nominal Voltage: 3.2V
- Nominal Capacity: 100Ah
- Discharge Cutoff Voltage: 2.5V
- Maximum Continuous Charge Current: 1C (50A)
- Standard Discharge Current: 1C (100A)
- Maximum Continuous Discharge Current: 1C (100A)
- Charging Voltage: 3.65V
- Dimensions: 40mm x 130mm x 220mm
- Weight: Approximately 2.8kg

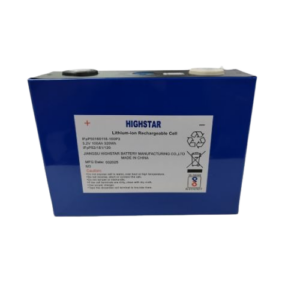

CELL HIGHSTAR 100 Ah (LASER WELDING) (ab12)
- Nominal Voltage: 3.2V
- Capacity: 100Ah
- Chemistry: Lithium Iron Phosphate (LiFePO₄ / LFP)
- Cycle Life: 2000–4000+ cycles (under recommended conditions)
- High Safety: Excellent thermal & chemical stability
- Low Internal Resistance: Strong discharge performance
- Laser Welding Terminals: Strong, secure & professional pack assembly
- Long Service Life: Reduced total ownership cost
- Maintenance-Free Operation

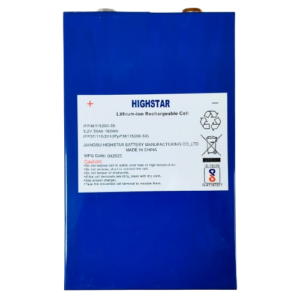

CELL HIGHSTAR LFP 50 Ah (11ab1)
- Nominal Voltage: 3.2 V
- Capacity: 50 Ah
- Chemistry: Lithium Iron Phosphate (LiFePO₄) – safe & stable
- High Performance: Consistent power delivery for demanding applications
- Long Cycle Life: Thousands of charge/discharge cycles
- Thermal Stability: Reduces risk of overheating or failure
- Low Self-Discharge: Great for long-term energy storage
- Compact & Durable: Easy to assemble into battery packs
- Wide Application: EVs, e-mobility, solar energy systems, UPS/backup power
- Reliable & Maintenance-Free: Ideal for commercial an

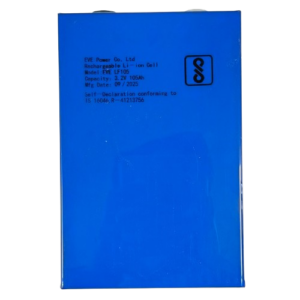

EVE CELL 3.2V 105AH-M6 (11a2b)
- Model: EVE LFP 105Ah Prismatic
- Nominal Voltage: 3.2V
- Nominal Capacity: 105Ah
- Charge Voltage: 3.65V
- Discharge Cutoff Voltage: 2.5V
- Cycle Life: >4,000 cycles (80% DOD)
- Max Charge Current: 1C (105A)
- Max Discharge Current: 3C (315A)
- Weight: ~2.3kg

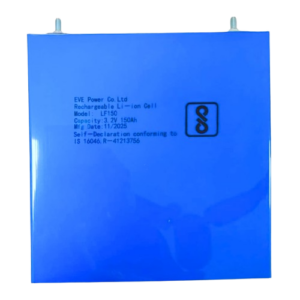

EVE CELL 3.2V 150AH EV CELL (11a12)
- Nominal Voltage: 3.2 V
- Capacity: 105 Ah — high energy storage for extended use
- Chemistry: LiFePO₄ (Lithium Iron Phosphate) — inherently safe & stable
- Outstanding Cycle Life: Thousands of cycles with minimal capacity loss
- High Safety Standards: Thermal stability, low risk of thermal runaway
- Low Self-Discharge: Retains charge during storage
- Excellent Charge/Discharge Efficiency: Supports heavy load usage
- Prismatic Format: Easy to assemble in series/parallel battery packs
- Wide Operating Temperature Range: Reliable in varied climates

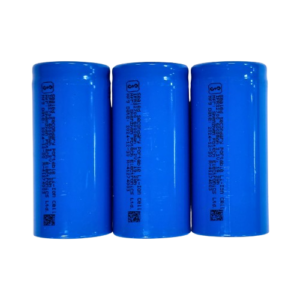

FBTECH LFP CELL 3.2V 6Ah 32700 SOLAR GRADE (10113)
- Model: 32700
- Nominal Voltage: 3.2V
- Nominal Capacity: 6Ah (6000mAh)
- Charge Voltage: 3.65V
- Discharge Cut-off Voltage: 2.5V
- Cycle Life: >2,000 cycles (80% DOD)
- Max Charge Current: 1C (6A)
- Max Discharge Current: 3C (18A)
- Peak Discharge Current: 5C (30A)
- Internal Resistance: ≤8mΩ
- Dimensions: 32mm x 70mm
- Weight: Approximately 145g

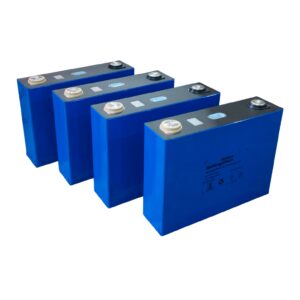

GANFENG-100AH (3.2V PRISMATIC CELLS) (01ab)
- Nominal Voltage: 3.2 V
- Capacity: 100 Ah (High Capacity for Extended Runtime)
- Chemistry: LiFePO₄ (Lithium Iron Phosphate) – inherently safe & thermally stable
- Long Cycle Life: Withstands thousands of charge/discharge cycles
- Stable Discharge Curve: Consistent power delivery under load
- Low Self-Discharge: Minimizes energy loss during storage
- High Safety Standard: Reduced risk of thermal runaway, enhanced chemical stability
- Prismatic Cell Format: Easy integration in series/parallel battery packs
- Durable Construction: Designed for rugged and high-demand environments

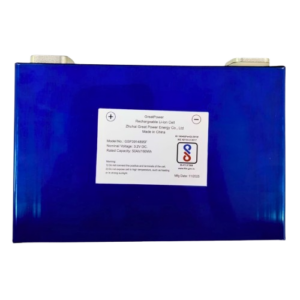

GREATPOWER 3.2V 50 AH EV CELL LEASER WELDING (11111)
- Nominal Voltage: 3.2V
- Capacity: 50Ah
- Chemistry: Lithium Iron Phosphate (LiFePO₄ / LFP)
- Application: Electric Vehicles (2W/3W/4W), Solar ESS, Inverter, UPS, RV & Marine
- Cycle Life: 2000+ cycles (depending on usage conditions)
- High Safety: Excellent thermal stability & low risk of thermal runaway
- Low Internal Resistance: Supports high discharge performance
- Lightweight & Compact: Easy integration into modular battery packs
- Laser Weld Compatible Terminals: Strong and secure pack assembly
- Eco-Friendly & Maintenance-Free
JSK 32140 15Ah ESS GRADE JIASHIKAL - A Grade (aa01)
- Product Name: LFP CELL 3.2V 15Ah JSK 32140 ESS A GRADE
- Cell Type: LiFePO4 (Lithium Iron Phosphate)
- Model: 32140 Cylindrical Cell
- Nominal Voltage: 3.2V
- Nominal Capacity: 15Ah (15,000mAh)
- Energy: 48Wh per cell
- Grade: A Grade (ESS-certified)
- Cycle Life: ≥3000 cycles @ 80% DOD
- Charge Voltage: 3.65V max
- Discharge Cut-off Voltage: 2.0V
- Standard Charge Current: 0.5C
- Max Continuous Discharge Current: 3C
- Internal Resistance: ≤12mΩ
- Operating Temperature: -20°C to +60°C
- Weight: Approx. 310g per cell

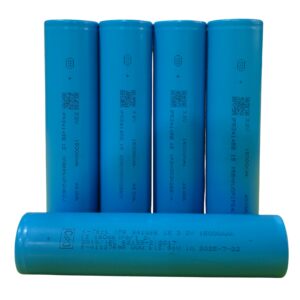

K-TECH CELL 15 Ah 34145 (10a1)
- Model: 34145
- Nominal Voltage: 3.2V
- Nominal Capacity: 15Ah (15000mAh)
- Charge Voltage: 3.65V
- Discharge Cut-off Voltage: 2.0V
- Cycle Life: >3,000 cycles (80% DOD)
- Max Charge Current: 1C (15A)
- Max Discharge Current: 3C (45A)
- Dimensions: 34mm x 145mm
- Weight: Approximately 380g
LFP CELL 3.2V 15AH CNAE 32140 ESS A GRADE (a1bc)
- Product Name: LFP CELL 3.2V 15Ah CNAE 32140 ESS A GRADE
- Cell Type: LiFePO4 (Lithium Iron Phosphate)
- Model: 32140 Cylindrical Cell
- Nominal Voltage: 3.2V
- Nominal Capacity: 15Ah (15,000mAh)
- Energy: 48Wh per cell
- Grade: A Grade (ESS-certified)
- Cycle Life: ≥3000 cycles @ 80% DOD
- Charge Voltage: 3.65V max
- Discharge Cut-off Voltage: 2.0V
- Standard Charge Current: 0.5C
- Max Continuous Discharge Current: 3C
- Internal Resistance: ≤12mΩ
- Operating Temperature: -20°C to +60°C
- Weight: Approx. 310g per cell
- Certifications: UN38.3, CE, RoHS, MSDS Certified

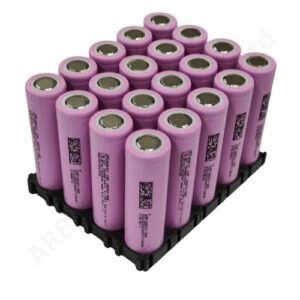

LITHUM-ION CELL 2600 mAh DMEGC 18650 (01e1)
- Model: 18650
- Nominal Voltage: 3.65V
- Nominal Capacity: 2600mAh
- Minimum Capacity: 2500mAh
- Charge Voltage: 4.2V
- Discharge Cutoff Voltage: 2.5V
- Cycle Life: >1,000 cycles (80% DOD)
- Max Charge Current: 1C (2.6A)
- Max Discharge Current: 2C (5.2A)
- Dimensions: 18mm x 65mm
- Weight: Approximately 45g

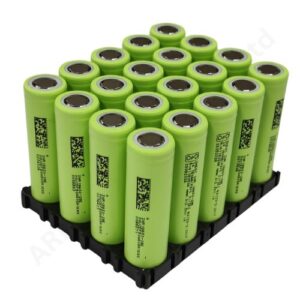

LITHUM-ION CELL 2900 mAh DMEGC 18650 (1916)
- Model: 18650
- Nominal Voltage: 3.65V
- Nominal Capacity: 2900mAh
- Minimum Capacity: 2750mAh
- Charge Voltage: 4.2V
- Discharge Cutoff Voltage: 2.5V
- Cycle Life: >1,000 cycles (80% DOD)
- Max Charge Current: 1C (2.6A)
- Max Discharge Current: 2C (5.2A)
- Dimensions: 18mm x 65mm
- Weight: Approximately 47g

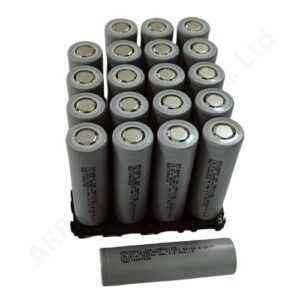

LITHUM-ION CELL 3200 mAh DMEGC 18650 (1926)
- Model: 18650
- Nominal Voltage: 3.7V
- Nominal Capacity: 3200mAh
- Minimum Capacity: 3100mAh
- Charge Voltage: 4.2V
- Discharge Cut-off Voltage: 2.5V
- Cycle Life >1,000 cycles (80% DOD)
- Maximum Discharge Current: 1C (3.2A)
- Maximum Discharge Current: 2C (6.4A
- Dimensions: 18mm x 65mm
- Weight: Approximately 48g

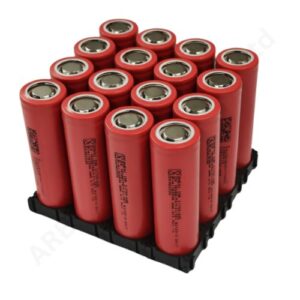

LITHUM-ION CELL 4500 mAh DMEGC 21700 (1937)
- Model: 21700
- Nominal Voltage: 3.7V
- Nominal Capacity: 4500mAh
- Minimum Capacity: 4400mAh
- Charge Voltage: 4.2V
- Discharge Cut-off Voltage: 2.5V
- Cycle Life: >1,000 cycles (80% DOD)
- Max Charge Current: 1C (4.5A)
- Maximum Discharge Current: 2C (9.0A)
- Dimensions: Diameter: 21mm x 70mm
- Weight: Approximately 70g
