TDT BMS

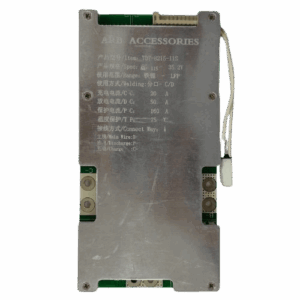

BMS LFP 11S 50A TDT TWO PORT (9001)
- Battery Type: LiFePO4 (LFP)
- Configuration: 11S (11 cells in series)
- Nominal Voltage: 35.2V
- Max Charging Voltage: 40.0V – 40.15V
- Continuous Current: 50A
- Peak Current: Higher short-duration tolerance
- Port Type: Two Port (Separate Charge & Discharge)
- Overcharge Detection: ~3.6–3.65V per cell
- Over-discharge Detection: ~2.0–2.5V per cell
- Balancing: Passive balancing
- Operating Temperature: Wide range

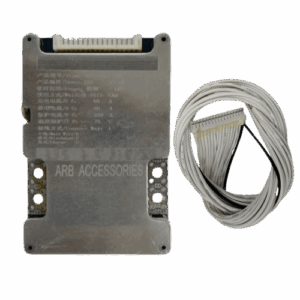

BMS LFP 16S 80A TDT TWO PORT (59yp)
- Battery Type: LiFePO4 (LFP)
- Configuration: 16S (16 cells in series)
- Nominal Voltage: 51.2V
- Max Charging Voltage: 57.6V – 58.4V
- Continuous Current: 80A
- Peak Current: Higher short-duration support
- Port Type: Two Port (Separate Charge & Discharge)
- Overcharge Detection: ~3.6–3.65V per cell
- Over-discharge Detection: ~2.0–2.5V per cell
- Balancing: Passive balancing
- Operating Temperature: Wide range
BMS LFP 19S 100A TDT TWO PORT (76y7)
- Battery Type: LiFePO4 (LFP)
- Configuration: 19S (19 cells in series)
- Nominal Voltage: 60.8V
- Max Charging Voltage: 68.4V – 69.35V
- Continuous Current: 100A
- Peak Current: Higher short-duration tolerance
- Port Type: Two Port (Separate Charge & Discharge)
- Overcharge Detection: ~3.6–3.65V per cell
- Over-discharge Detection: ~2.0–2.5V per cell
- Balancing: Passive balancing
- Operating Temperature: Wide range

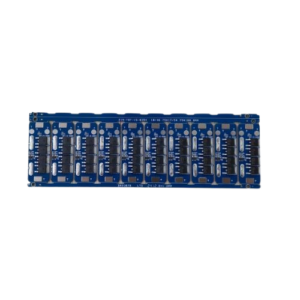

BMS LFP 1S 10A (TDT) (56a5)
- input Voltage B+ to B-: -0.3~+24V
- Overcharge Detection voltage/1CELL: 4.25±0.05V
- Over discharge Detection voltage/1CELL: 2.7±0.1V
- suggest working temperature: -20°C~+60°C
- Over current 17~23A

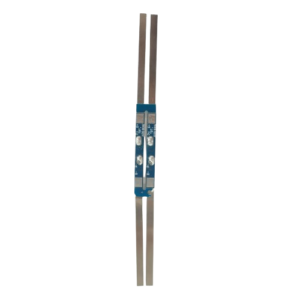

BMS LFP 1S 2A (TDT) (k642)
- Battery Type: LiFePO4 (LFP)
- Series Cells: 1S
- Nominal Voltage: 3.2V
- Max Charge Voltage: ~3.6–3.65V
- Overcharge Detection: ~4.25 ±0.05V
- Over-discharge Cut-off: ~2.7 ±0.1V
- Continuous Current: 2A
- Peak Current: up to ~8A (short duration)
- Operating Temperature: approx. -20°C to 60°C

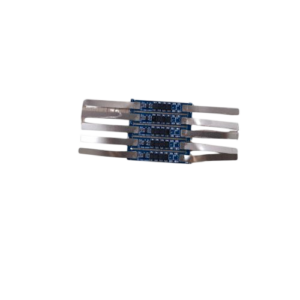

BMS LFP 1S 6A (TDT) (36vc)
- Mode: TDT-4S-8063 6A
- input Voltage B+ to B-: -0.3~+24V
- Overcharge Detection voltage/1CELL: 4.25±0.05V
- Over discharge Detection voltage/1CELL: 2.7±0.1V
- suggest working temperature: -20°C~+60°C
- Over current 17~23A

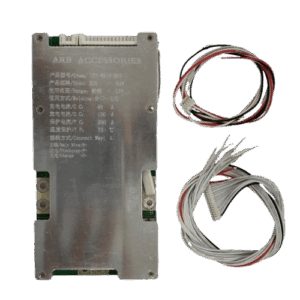

BMS LFP 20S 100A TDT SAME PORT (87k8)
- Battery Type: LiFePO4 (LFP)
- Configuration: 20S (20 cells in series)
- Nominal Voltage: 64V
- Max Charging Voltage: 72.0V – 73.0V
- Continuous Current: 100A
- Peak Current: Higher short-duration support
- Port Type: Same Port (Charge & Discharge combined)
- Overcharge Detection: ~3.6–3.65V per cell
- Over-discharge Detection: ~2.0–2.5V per cell
- Balancing: Passive balancing
- Operating Temperature: Wide range

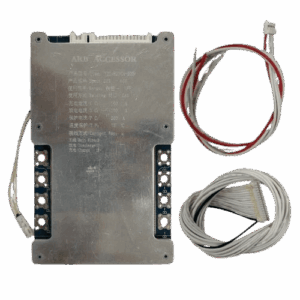

BMS LFP 20S 100A TDT TWO PORT (35l3)
- Battery Type: LiFePO4 (LFP)
- Configuration: 20S (20 cells in series)
- Nominal Voltage: 64V
- Max Charging Voltage: 72.0V – 73.0V
- Continuous Current: 100A
- Peak Current: Higher short-duration support
- Port Type: Two Port (Separate Charge & Discharge)
- Overcharge Detection: ~3.6–3.65V per cell
- Over-discharge Detection: ~2.0–2.5V per cell
- Balancing: Passive balancing
- Operating Temperature: Wide range

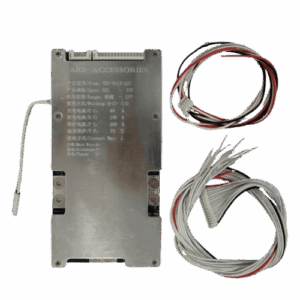

BMS LFP 22S 100A TDT (1481)
- Battery Type: LiFePO4 (LFP)
- Configuration: 22S (22 cells in series)
- Nominal Voltage: 70.4V
- Max Charging Voltage: 79.2V – 80.3V
- Continuous Current: 100A
- Peak Current: Higher short-duration support
- Port Type: Standard configuration (verify same port / separate port as per model)
- Overcharge Detection: ~3.6–3.65V per cell
- Over-discharge Detection: ~2.0–2.5V per cell
- Balancing: Passive balancing
- Operating Temperature: Wide range

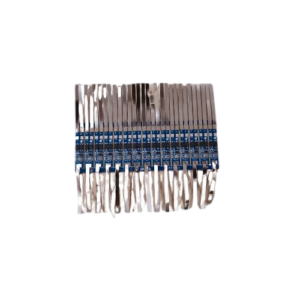

BMS LFP 2S 4A (TDT) (51sf)
- input Voltage B+ to B-: -0.3~+24V
- Overcharge Detection voltage/1CELL: 4.25±0.05V
- Over discharge Detection voltage/1CELL: 2.7±0.1V
- suggest working temperature: -20°C~+60°C
- Over current 17~23A

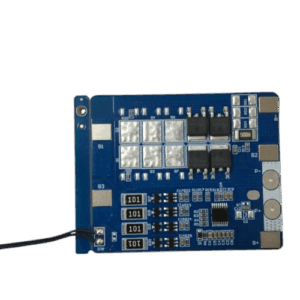

BMS LFP 4S 10A BLUE SQURE 8181A (TDT) (3344)
- Mode: TDT-8114
- input Voltage B+ to B-: -0.3~+16.8V
- Overcharge Detection voltage/1CELL: 4.25±0.05V
- Over discharge Detection voltage/1CELL: 2.7±0.1V
- suggest working temperature: -20°C~+60°C
- Over current: 15~25A

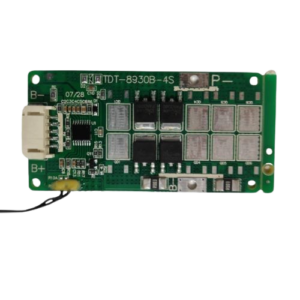

BMS LFP 4S 10AMP WITH BAL WITH CONNECT(TDT) (l257)
- Mode: TDT-8114
- input Voltage B+ to B-: -0.3~+16.8V
- Overcharge Detection voltage/1CELL: 4.25±0.05V
- Over discharge Detection voltage/1CELL: 2.7±0.1V
- suggest working temperature: -20°C~+60°C
- Over current: 15~25A

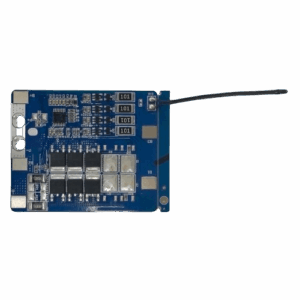

BMS LFP 4S 15AMP BLUE SQURE (TDT) (f545)
- Battery Type: LiFePO4 (LFP)
- Configuration: 4S (4 cells in series)
- Nominal Voltage: 12.8V
- Max Charging Voltage: 14.4V – 14.6V
- Continuous Current: 15A
- Balancing: Yes (Passive)
- Protection: Overcharge, Over-discharge, Overcurrent, Short Circuit
- Operating Temperature: Wide range support

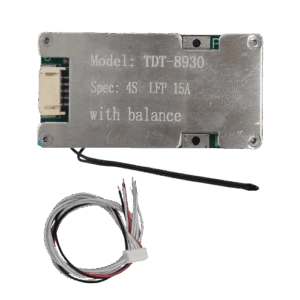

BMS LFP 4S 15AMP WITH CONNECTOR (TDT) (n393)
- Battery Type: LiFePO4 (LFP)
- Configuration: 4S (4 cells in series)
- Nominal Voltage: 12.8V
- Charging Voltage: 14.4V – 14.6V
- Continuous Charge/Discharge Current: 15A
- Overcharge Detection: ~3.6V per cell
- Over-discharge Detection: ~2.0–2.5V per cell
- Balancing: Passive balancing
- Connector Type: Pre-installed (JST-type / similar)
- Operating Temperature: Wide range support

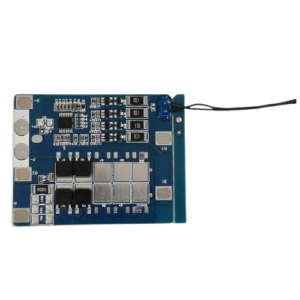

BMS LFP 4S 20A BLUE SQURAE 8181A (TDT) (32d3)
- Mode: TDT-8114
- input Voltage B+ to B-: -0.3~+16.8V
- Overcharge Detection voltage/1CELL: 4.25±0.05V
- Over discharge Detection voltage/1CELL: 2.7±0.1V
- suggest working temperature: -20°C~+60°C
- Over current: 15~25A
BMS LFP 4S 20A WITH CON (TDT) (6117)
- Model TDT-4S-8181A 20A LFP
- input Voltage B+ to B-: -0.3~+15V
- Overcharge Detection voltage/1CELL: 3.65±0.05V
- Over discharge Detection voltage/1CELL: 2.32±0.1V
- Charge temperature protection 0°C~+50°C
- Discharge temperature protection 65°C~+75°C

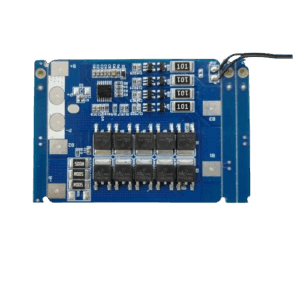

BMS LFP 4S 25A BLUE SQURE 8181A TDT (u246)
- Battery Type: LiFePO4 (LFP)
- Configuration: 4S (4 cells in series)
- Nominal Voltage: 12.8V
- Max Charging Voltage: 14.4V – 14.6V
- Continuous Current: 25A
- Peak Current: Higher short-duration tolerance
- Overcharge Detection: ~3.6V per cell
- Over-discharge Detection: ~2.0–2.5V per cell
- Balancing: Passive balancing supported
- Operating Temperature: Wide range
BMS LFP 4S 30A WITH BAL (TDT) (53sr)
- Model TDT-4S-8181A 30A LFP
- input Voltage B+ to B-: -0.3~+15V
- Overcharge Detection voltage/1CELL: 3.65±0.05V
- Over discharge Detection voltage/1CELL: 2.32±0.1V
- Charge temperature protection 0°C~+50°C
- Discharge temperature protection 65°C~+75°C

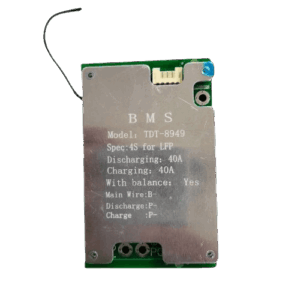

BMS LFP 4S 40A SAME PORT TDT (92s7)
- Battery Type: LiFePO4 (LFP)
- Configuration: 4S (4 cells in series)
- Nominal Voltage: 12.8V
- Max Charging Voltage: 14.4V – 14.6V
- Continuous Current: 40A
- Peak Current: Higher short-duration support
- Port Type: Same Port (Charge & Discharge combined)
- Overcharge Detection: ~3.6V per cell
- Over-discharge Detection: ~2.0–2.5V per cell
- Balancing: Passive balancing
- Operating Temperature: Wide range

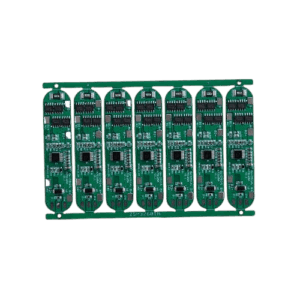

BMS LFP 4S 6A (TDT) (9a85)
- Mode: TDT-4S-8063 6A
- input Voltage B+ to B-: -0.3~+24V
- Overcharge Detection voltage/1CELL: 4.25±0.05V
- Over discharge Detection voltage/1CELL: 2.7±0.1V
- suggest working temperature: -20°C~+60°C
- Over current 17~23A

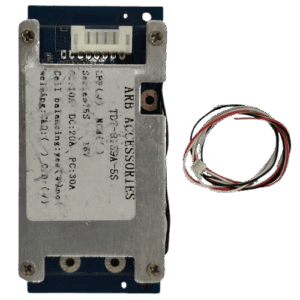

BMS LFP 5S 20A TDT TWO PORT (13a5)
- Battery Type: LiFePO4 (LFP)
- Configuration: 5S (5 cells in series)
- Nominal Voltage: ~16V
- Max Charging Voltage: 18.0V – 18.25V
- Continuous Current: 20A
- Peak Current: Higher short-duration tolerance
- Port Type: Two Port (Separate Charge & Discharge)
- Overcharge Detection: ~3.6–3.65V per cell
- Over-discharge Detection: ~2.0–2.5V per cell
- Balancing: Passive balancing
- Operating Temperature: Wide range

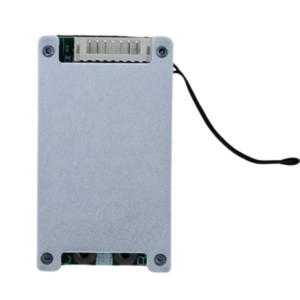

BMS LFP 8S 10A (TDT) (191y)
- Model TDT-8S-8181A 10A LFP
- input Voltage B+ to B-: -0.3~+15V
- Overcharge Detection voltage/1CELL: 3.65±0.05V
- Over discharge Detection voltage/1CELL: 2.32±0.1V
- Charge temperature protection 0°C~+50°C
- Discharge temperature protection 65°C~+75°C

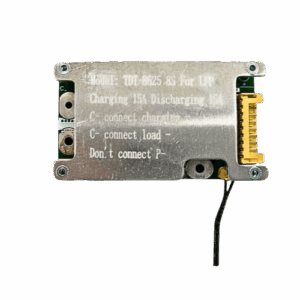

BMS LFP 8S 15A SAME PORT (TDT) (y597)
- Battery Type: LiFePO4 (LFP)
- Configuration: 8S (8 cells in series)
- Nominal Voltage: 25.6V
- Max Charging Voltage: 28.8V – 29.2V
- Continuous Current: 15A
- Peak Current: Higher short-duration support
- Port Type: Same Port (Charge & Discharge combined)
- Overcharge Detection: ~3.6V per cell
- Over-discharge Detection: ~2.0–2.5V per cell
- Balancing: Passive balancing
- Operating Temperature: Wide range
BMS LFP 8S 20A (TDT) (369p)
- Model TDT-8S-8181A 20A LFP
- input Voltage B+ to B-: -0.3~+15V
- Overcharge Detection voltage/1CELL: 3.65±0.05V
- Over discharge Detection voltage/1CELL: 2.32±0.1V
- Charge temperature protection 0°C~+50°C
- Discharge temperature protection 65°C~+75°C
