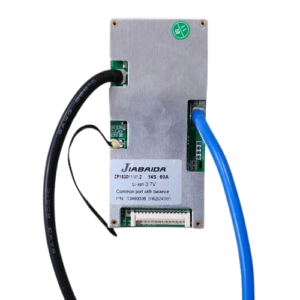

BMS NMC 14S 60A JBD (ZP16S011) (654t)
- Brand: JBD (Jiabaida)
- Model: ZP16S011 / 654T
- Battery Type: Lithium-ion (NMC / Li-ion)
- Configuration: 14S (14 cells in series)
- Nominal Voltage: 51.8V (~52V system)
- Max Charging Voltage: 58.8V (4.2V × 14)
- Continuous Current: 60A (charge & discharge)
- Peak Current: ~80A (short duration ~10s)
- Recommended Charge Current: Up to 30A

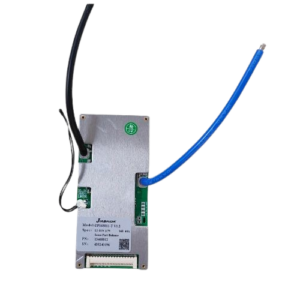

BMS NMC 16S 40A JBD (ZP16S011) (878k)
- Brand: JBD (Jiabaida)
- Model: ZP16S011 / 878K
- Battery Type: Lithium-ion (NMC / Li-ion)
- Configuration: 16S (16 cells in series)
- Nominal Voltage: ~59.2V (60V system)
- Max Charging Voltage: 67.2V (4.2V × 16)
- Continuous Discharge Current: 40A
- Peak Current: 80A–120A (short duration)
- Charge Current: 20A–40A

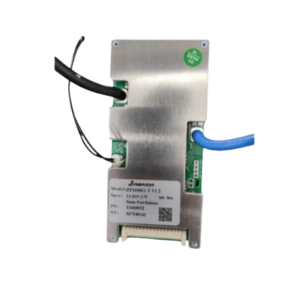

BMS NMC 16S 50A JBD (ZP16S011) (17ci)
- Brand: JBD (Jiabaida)
- Model: ZP16S011 / 17CI
- Battery Type: Lithium-ion (NMC / Li-ion)
- Configuration: 16S (16 cells in series)
- Nominal Voltage: 59.2V (60V system)
- Max Charging Voltage: 67.2V (4.2V × 16)
- Continuous Discharge Current: 50A
- Peak Current: 100A–150A (short duration)
- Charge Current: 25A–50A

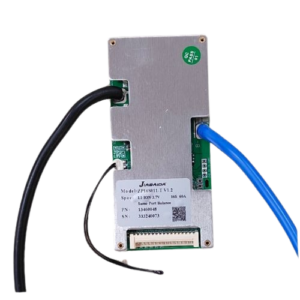

BMS NMC 16S 60A JBD (ZP16S011) (1541)
- Brand: JBD (Jiabaida)
- Model: ZP16S011 / 1541
- Battery Type: Lithium-ion (NMC / Li-ion)
- Configuration: 16S (16 cells in series)
- Nominal Voltage: 59.2V (60V system)
- Max Charging Voltage: 67.2V (4.2V × 16)
- Continuous Charge/Discharge Current: 60A
- Peak Current: 100A–150A (short duration)
- Recommended Charge Current: 30A–50A

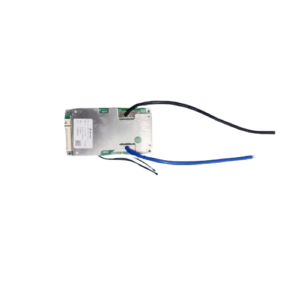

BMS NMC 17S 40A JBD (ZP20S007) (55a5)
- Brand: JBD (Jiabaida)
- Model: ZP20S007 / 55A5
- Battery Type: Lithium-ion (NMC / Li-ion)
- Configuration: 17S (17 cells in series)
- Nominal Voltage: ~62.9V (63V system)
- Max Charging Voltage: 71.4V (4.2V × 17)
- Continuous Discharge Current: 40A
- Peak Current: 80A–120A (short duration)
- Charge Current: 20A–40A

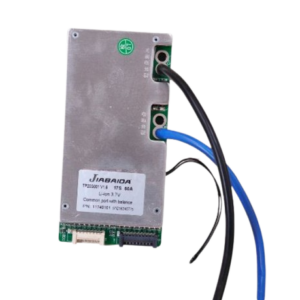

BMS NMC 17S 50A JBD (ZP20S007) (81rt)
- Brand: JBD (Jiabaida)
- Model: ZP20S007 / 81RT
- Battery Type: Lithium-ion (NMC / Li-ion)
- Configuration: 17S (17 cells in series)
- Nominal Voltage: ~62.9V (63V system)
- Max Charging Voltage: 71.4V (4.2V × 17)
- Continuous Charge/Discharge Current: 50A
- Peak Current: 100A–150A (short duration)
- Recommended Charge Current: 25A–40A
BMS NMC 17S 60A JBD (HP24SA) (66t6)
- Brand: JBD (Jiabaida)
- Model: HP24SA / 66T6
- Battery Type: Lithium‑ion (NMC / Li‑ion)
- Series: 17S (17 cells in series)
- Nominal Voltage: ~62.9 V (≈63 V system)
- Max Charging Voltage: 71.4 V (4.2 V × 17)
- Continuous Charge/Discharge Current: 60 A
- Peak Current: ~100 A–150 A (short bursts)
- Recommended Charge Current: 30 A–50 A

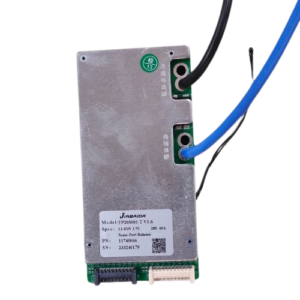

BMS NMC 20S 40A JBD (ZP20S007) (345s)
- Brand: JBD (Jiabaida)
- Model: ZP20S007 / 345S
- Battery Type: Lithium-ion (NMC / Li‑ion)
- Series: 20S (20 cells in series)
- Nominal Voltage: ~74 V (≈74 V system)
- Max Charging Voltage: 84 V (4.2 V × 20)
- Continuous Charge/Discharge Current: 40 A
- Peak Current: ~80–120 A (short bursts)
- Recommended Charge Current: 20–40 A
BMS NMC 20S 50A JBD (ZP20S007) (1551)
- Brand: JBD (Jiabaida)
- Model: ZP20S007 / 1551
- Battery Type: Lithium‑ion (NMC / Li‑ion)
- Series: 20S (20 cells in series)
- Nominal Voltage: ~74 V (≈74 V system)
- Max Charging Voltage: 84 V (4.2 V × 20)
- Continuous Charge/Discharge Current: 50 A
- Peak Current: ~100–150 A (short bursts)
- Recommended Charge Current: 30–50 A

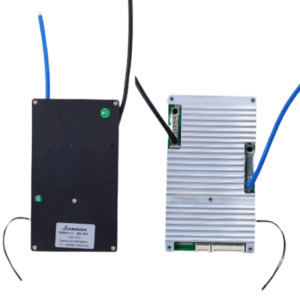

BMS NMC 20S 60A JBD (ZP20S007) (52sa)
- Brand: JBD (Jiabaida)
- Model: ZP20S007 / 52SA
- Battery Type: Lithium‑ion (NMC / Li‑ion)
- Series: 20S (20 cells in series)
- Nominal Voltage: ~74 V (≈74 V system)
- Max Charging Voltage: 84 V (4.2 V × 20)
- Continuous Charge/Discharge Current: 60 A
- Peak Current: ~100–150 A (short bursts)
- Recommended Charge Current: 30–60 A

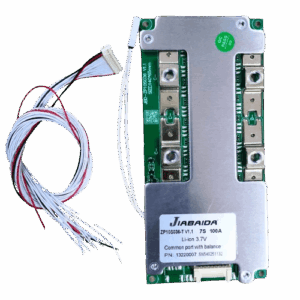

BMS NMC 7S 100A JBD (ZP10S036) (12bcb)
- Battery Type: Lithium‑ion / NMC
- Series: 7S (24–29.4 V nominal)
- Continuous Current: Up to 100 A
- Balance Current: ~150–250 mA per cell
- Operating Temperature: ~‑20 °C to +75 °C
- Protection Functions: OVP, UVP, OCP, SCP, Temp
- PCB Dimensions: ~140 × 65 × 20 mm

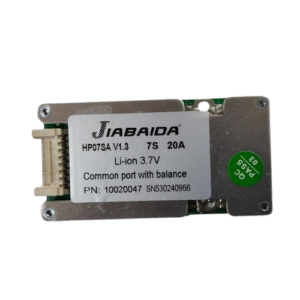

BMS NMC 7S 20A JBD (HP07SA) (543j)
- Battery Type: Lithium-ion / NMC
- Series: 7S
- Nominal Voltage: ~25.9V
- Max Charging Voltage: ~29.4V
- Continuous Current: 20A
- Balancing Current: ~30–50mA
- Internal Resistance: ≤20mΩ
- Operating Temperature: -20°C to +65°C
- Port Type: Common Port
- Protection: OVP, UVP, OCP, SCP, Temperature

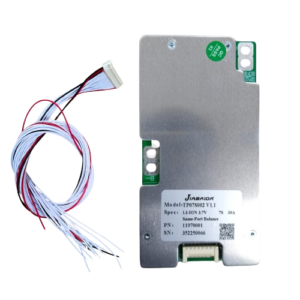

BMS NMC 7S 30A JBD (TP07S002) (1122k)
- Battery Type: Lithium-ion (NMC)
- Series: 7S
- Nominal Voltage: ~25.9V
- Max Charging Voltage: ~29.4V
- Continuous Current: 30A
- Operating Voltage Range: ~18.9V – 29.7V
- Balancing Current: ~40–60mA
- Operating Temperature: -20°C to +70°C
- Port Type: Common Port
- Protection: OVP, UVP, OCP, SCP, Temperature

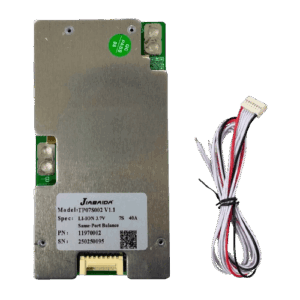

BMS NMC 7S 40A JBD (TP07S002) (11d5e)
- Battery Type: Lithium-ion (NMC)
- Series: 7S
- Nominal Voltage: ~25.9V
- Max Charging Voltage: ~29.4V
- Continuous Current: 40A
- Peak Current: ~80–120A (short duration)
- Balancing Current: ~40–80mA
- Operating Temperature: -20°C to +70°C
- Port Type: Common Port
- Protection: OVP, UVP, OCP, SCP, Temperature

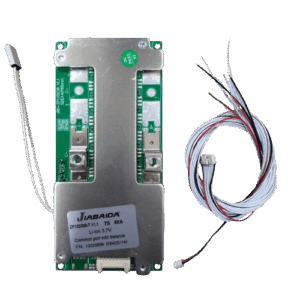

BMS NMC 7S 60A JBD (ZP10S036) (11ada)
- Battery Type: Lithium‑ion (NMC / Li‑ion)
- Series: 7S (~24 V nominal)
- Continuous Current: 60 A (charge & discharge)
- Balance Current: ~150 mA–250 mA per cell
- Working Voltage: ~24 V system
- Communication: No built‑in Bluetooth / UART in basic version
- External Sensor: 1 temperature sensor provided
- Dimensions: ~140 × 65 × 20 mm (typical)
