BMS LFP 4S 120A JBD (ZP04S014) (8g5k)
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Series Configuration: 4 Series (4S)
- Interface Type: (Charge and discharge are both at the same port)
- Charging Voltage: 3.6V(3.6VxNumber of strings)
- Continuous Charging Current: 120A
- Continuous Discharging Current: 120A
- Cell voltage range: 2.20~3.75V
- Consumption: ≤150uA
- Circuit resistance: ≤10mR
- Operating Temperature Range: -20°C~75°C
- Size: 144x85x10mm
BMS LFP 4S 150A JBD (CP04S024) (51sa9)
- Model: CP04S024 (51sa9)
- Battery Type: LiFePO4 (LFP)
- Series Support: 4S (4 Cells)
- Nominal Voltage: 12.8V
- Continuous Discharge Current: 150A
- Peak Current: Up to 180A
- Balancing Type: Passive balancing
- Operating Temperature: −20°C to +75°C
- Port Type: Common port (charge & discharge same port)
- Approx. Size: 120 × 65 × 20 mm
- Applications: Solar battery packs, EV battery packs, inverter batteries, DIY lithium batteries, portable power stations.
BMS LFP 4S 150A JBD (ZP04S016) (5r4t)
- Model: ZP04S016 (5r4t)
- Battery Type: LiFePO4 (LFP)
- Series Support: 4S (4 Cells)
- Nominal Voltage: 12.8V
- Continuous Discharge Current: 150A
- Continuous Charging Current: 75A
- Cell Voltage Range: 2.2V – 3.75V
- Internal Resistance: ≤10 mΩ
- Standby Consumption: ≤150 µA
- Operating Temperature: −20°C to +75°C
- Balancing: Passive cell balancing
- Application: Solar battery packs, EV battery packs, UPS, inverter batteries, portable power systems.
BMS LFP 4S 200A JBD (ZP04S016) (7j8k)
- Model: ZP04S016 (7j8k)
- Battery Type: LiFePO4 (LFP)
- Series Support: 4S (4 Cells)
- Nominal Voltage: 12.8V
- Continuous Discharge Current: 200A
- Peak Current: Up to ~220A
- Balance Current: ~250mA
- Port Type: Common Port (Charge & Discharge same port)
- Operating Temperature: −20°C to +75°C
- Dimensions: Approx. 150 × 80 × 25 mm
- Weight: ~180–200 g
- Applications: Solar battery packs, EV battery systems, inverter batteries, UPS systems, portable power stations, DIY lithium batteries.
BMS LFP 4S 20A JBD (CP04S005) (857a)
- Battery Chemistry: Lithium Iron Phosphate (LiFePO4 / LFP)
- Series Configuration: 4S (12.8V Nominal)
- Rated Discharge Current: 20A
- Charge Current: Up to 10A
- Balancing Type: Passive balancing
- BMS Type: Hardware (no Bluetooth or software interface)
- Compact Design: Lightweight and easy to install in tight enclosures
- Application: Ideal for low to medium power EVs, such as e-scooters, e-cycles, solar packs, and DIY battery projects
BMS LFP 4S 30A JBD (HP04S024) (i51a)
- Battery Chemistry: Lithium Iron Phosphate (LiFePO4 / LFP)
- Series Configuration: 4S (12.8V Nominal)
- Rated Discharge Current: 30A
- Balancing Type: Passive balancing
- BMS Type: Hardware (no Bluetooth or software interface)
- Compact Design: Lightweight and easy to install in tight enclosures
- Application: Ideal for low to medium power EVs, such as e-scooters, e-cycles, solar packs, and DIY battery projects
BMS LFP 4S 40A JBD (HP04S024) (s19r)
- Battery Chemistry: Lithium Iron Phosphate (LiFePO4 / LFP)
- Series Configuration: 4S (12.8V Nominal)
- Rated Discharge Current: 40A
- Balancing Type: Passive balancing
- BMS Type: Hardware (no Bluetooth or software interface)
- Compact Design: Lightweight and easy to install in tight enclosures
- Application: Ideal for low to medium power EVs, such as e-scooters, e-cycles, solar packs, and DIY battery projects
BMS LFP 4S 50A JBD (ZP04S014) (78sa)
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Series Configuration: 4 Series (4S)
- Interface Type: (Charge and discharge are both at the same port)
- Charging Voltage: 3.6V(3.6VxNumber of strings)
- Continuous Charging Current: 50A
- Continuous Discharging Current: 50A
- Cell voltage range: 2.20~3.75V
- Consumption: ≤150uA
- Circuit resistance: ≤10mR
- Operating Temperature Range: -20°C~75°C
- Size: 144x85x10mm
BMS LFP 4S 60A JBD (HP04S024) (78pc)
- Model: HP04S024
- Battery Type: LiFePO4 (LFP)
- Series Support: 4S (4 cells)
- Nominal Voltage: 12.8V
- Continuous Discharge Current: 60A
- Charging Current: Up to 30A
- Overcharge Protection: 3.65V ±0.05V / cell
- Over-discharge Protection: 2.5V ±0.05V / cell
- Balancing Current: 30-60mA
- Operating Temperature: −20°C to 70°C
- Communication: UART / RS485 / Bluetooth (optional)
- Applications: Solar battery, e-bike, UPS, energy storage, DIY battery packs.
BMS LFP 4S 80A JBD (ZP04S014) (7jjs)
- Model: ZP04S014
- Battery Type: LiFePO4 (LFP)
- Series Support: 4S (4 Cells)
- Nominal Voltage: 12.8V
- Continuous Discharge Current: 80A
- Balance Current: 150–250mA
- Temperature Sensor: External NTC
- Operating Temperature: −20°C to +75°C
- Protection: Over-charge, Over-discharge, Over-current, Short-circuit, Temperature protection
- Design: Common port (charge & discharge same port)
- Dimensions: ~144 × 85 × 10 mm
- Applications: Solar battery, e-bike, UPS, inverter battery packs, energy storage systems.
BMS LFP 8S 100A JBD (ZP10S036) (91v8)
| Specification | Details |
|---|---|
| Model | ZP10S036 (91v8) |
| Battery Chemistry | LiFePO₄ (LFP) |
| Series Supported | 8S (8 cells in series) |
| Nominal Voltage | ~25.6 V |
| Continuous Discharge Current | 100 A |
| Charging Current (Max) | ~50 A |
| Cell Balancing | Passive balancing |
| Balance Current | ~150–250 mA (approx.) |
| Protection Functions | Over‑charge / Over‑discharge / Over‑current / Short‑circuit / Temperature |
| Port Type | Common‑port (shared charge & discharge) |
| Operating Temp | –20°C to +75°C |
| Applications | Solar energy storage, EV batteries, inverters/UPS, portable power packs |
BMS LFP 8S 120A JBD (ZP10S036) (i977)
| Specification | Details |
|---|---|
| Model | ZP10S036 (i977) |
| Battery Chemistry | LiFePO₄ (LFP) |
| Series Supported | 8S (8 Cells in Series) |
| Nominal Voltage | ~25.6 V |
| Continuous Discharge Current | 120 A |
| Charging Current (Max) | ~60 A |
| Cell Balancing | Passive balancing |
| Balance Current | ~150–250 mA (approx.) |
| Protection Features | Over‑charge / Over‑discharge / Over‑current / Short‑circuit / Temperature |
| Port Type | Common‑port (shared charge & discharge) |
| Operating Temp Range | –20 °C to +75 °C |
| Applications | Solar energy storage, EV battery packs, UPS/inverters, portable power packs |
BMS LFP 8S 150A JBD (ZP10S036) (9t1l)
| Feature | Specification |
|---|---|
| Model | ZP10S036 (9t1l) |
| Battery Type | LiFePO₄ (LFP) |
| Series Support | 8S (8 Cells in Series) |
| Nominal Voltage | ~25.6 V |
| Continuous Discharge Current | 150 A |
| Peak Discharge Current | Up to ~180 A |
| Cell Balancing | Passive balancing |
| Balance Current | ~150–250 mA (approx.) |
| Protection Functions | Over‑charge, Over‑discharge, Over‑current, Short‑circuit, Temperature |
| Port Type | Common‑port |
| Operating Temperature | –20 °C to +75 °C |
| Applications | Solar storage, EV battery packs, UPS/Inverter systems, large portable power packs |
BMS LFP 8S 200A JBD (ZP08S002) (g5kj)
| Specification | Details |
|---|---|
| Model | ZP08S002 (g5kj) |
| Battery Type | LiFePO₄ (LFP) |
| Series Support | 8S (8 Cells in Series) |
| Nominal Voltage | ~25.6 V |
| Continuous Discharge Current | 200 A |
| Peak Current | ~220 A (short duration) |
| Balance Type | Passive cell balancing |
| Balance Current | ~120–160 mA |
| Protection Functions | Over-charge / Over-discharge / Over-current / Short-circuit / Temperature |
| Port Type | Common port (charge & discharge same port) |
| Operating Temperature | −20 °C to +75 °C |
| Board Size | approx. 160 × 105 × 20 mm |
| Applications | Solar storage, EV batteries, UPS/inverter systems, DIY powerwalls |
BMS LFP 8S 20A JBD (HP16SA) (5359)
- Model: HP16SA (5359)
- Battery Type: LiFePO4 (LFP)
- Series Support: 8S (8 Cells)
- Nominal Voltage: 25.6V
- Max Charge Voltage: ~29.2V
- Continuous Discharge Current: 20A
- Charging Current: Up to 10A
- Balance Current: ~30–50 mA
- Overcharge Detection: ~3.75V / cell
- Over-discharge Detection: ~2.0V / cell
- Operating Temperature: −20°C to +60°C
- Board Size: ~57 × 69 × 10 mm
- Applications: 24V lithium battery packs, solar storage systems, electric bikes, inverter batteries, DIY battery packs.
BMS LFP 8S 30A JBD (HP08S001) (ikk5)
- Model: HP08S001 (ikk5)
- Battery Type: LiFePO4 (LFP)
- Series Support: 8S (8 Cells)
- Nominal Voltage: 25.6V
- Continuous Discharge Current: 30A
- Charging Current: Up to 15A
- Overcharge Protection: ~3.65V ±0.05V per cell
- Over-discharge Protection: ~2.5V ±0.05V per cell
- Balancing Current: 30–60 mA
- Operating Temperature: −20°C to +70°C
- Dimensions: ~90 × 65 × 10 mm
- Applications: 24V lithium battery packs, solar energy storage, electric bikes, inverter systems, portable power stations.
BMS LFP 8S 40A JBD (HP08S001) (53j3)
- Model: HP08S001 (53j3)
- Battery Type: LiFePO4 (LFP)
- Series Support: 8S (8 Cells)
- Nominal Voltage: 25.6V
- Continuous Discharge Current: 40A
- Charging Current: Up to ~20A
- Balancing Type: Passive cell balancing
- Protection Functions: Over-charge, Over-discharge, Over-current, Short-circuit, Temperature protection
- Operating Temperature: −20°C to +70°C
- Approx. Size: ~90 × 65 × 10 mm
- Applications: 24V lithium battery packs, solar battery storage, inverter systems, EV batteries, portable power stations.
BMS LFP 8S 50A JBD (HP08S001) (s511)
- Model: HP08S001 (s511)
- Battery Type: LiFePO4 (LFP)
- Series Support: 8S (8 Cells)
- Nominal Voltage: 25.6V
- Max Charge Voltage: ~29.2V
- Continuous Discharge Current: 50A
- Charging Current: Up to ~25A
- Balancing Current: ~30–60 mA
- Over-charge Detection: ~3.65-3.75V / cell
- Over-discharge Detection: ~2.0-2.5V / cell
- Operating Temperature: −20°C to +70°C
- Port Type: Common Port (Charge & Discharge same port)
- Applications: 24V lithium battery packs, solar storage systems, electric scooters, inverter batteries, portable power stations.
BMS LFP 8S 60A JBD (HP08S001) (98k8)
- Model: HP08S001 (98k8)
- Battery Type: LiFePO4 (LFP)
- Series Support: 8S (8 Cells)
- Nominal Voltage: 25.6V
- Max Charge Voltage: ~29.2V
- Continuous Discharge Current: 60A
- Charging Current: Up to ~30A
- Balance Current: ~50 mA per cell
- Over-charge Protection: ~3.65V / cell
- Over-discharge Protection: ~2.5V / cell
- Operating Temperature: −20°C to +70°C
- PCB Size: approx. 125 × 65 mm
- Applications: 24V lithium battery packs, solar storage systems, inverter batteries, electric vehicles, portable power stations, DIY battery packs.
BMS LFP 8S 60A JBD (ZP10S036) (85t6)
| Feature | Specification |
|---|---|
| Model | ZP10S036 (85t6) |
| Battery Type | LiFePO₄ (LFP) |
| Series | 8S (8 Cells in Series) |
| Nominal Voltage | ~25.6 V |
| Continuous Discharge Current | 60 A |
| Charging Current (Max) | ~30 A |
| Cell Balancing | Passive balancing (common‑port) |
| Balance Current | 150–250 mA (approx.) |
| Temperature Sensor | 1 External NTC |
| Operating Temperature | –20 °C to +75 °C |
| Protection Functions | Over‑charge / Over‑discharge / Over‑current / Short‑circuit / Temperature |
| Port Type | Common‑port (charge & discharge through same terminals) |
| Applications | Solar systems, EV/Scooter/LiFePO₄ battery builds, UPS & inverter backups |
BMS LFP 8S 80A JBD (ZP10S036) (69t9)
- Product Name: BMS LFP 8S 80A JBD (ZP10S036)
- SKU/Part No.: ZP10S036
- Brand: Jiabaida (JBD)
- Cell Count Support: 8S (LiFePO4 only)
- Port Style: Same-port configuration
- Warranty: 6-month limited warranty

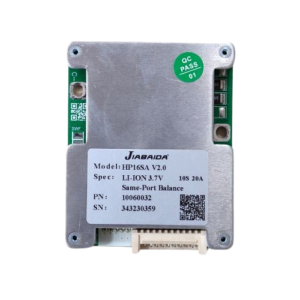

BMS NMC 10S 20A JBD (ZP10S001) (5554)
- Battery Type: Lithium‑ion (NMC)
- Series: 10S
- Nominal Voltage: ~36 V
- Max Charging Voltage: ~42 V
- Continuous Current: 20 A
- Balancing Current: ~30‑60 mA/cell
- Operating Temperature: ~‑20 °C to +70 °C
- Protection: OVP, UVP, OCP, SCP, Temperature
- Port Type: Common Port

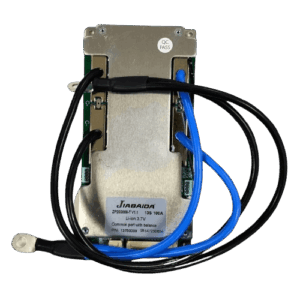

BMS NMC 13S 100A JBD (33a66)
- Brand: JBD (Jiabaida)
- Model: 13S 100A (33A66 series)
- Battery Type: Lithium-ion (NMC / Li-ion)
- Cell Configuration: 13 Series (13S)
- Nominal Voltage: 48V
- Max Charging Voltage: 54.6V (4.2V × 13)
- Continuous Discharge Current: 100A
- Peak Current: 150A–300A (short duration)
- Charge Current: 50A–100A
- Cell Voltage Range:
Overcharge Protection: ~4.20–4.25V Over-discharge Protection: ~2.7–3.0V

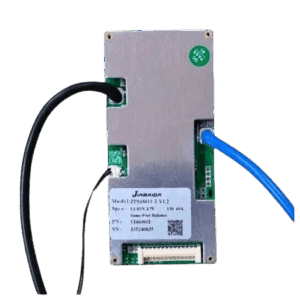

BMS NMC 13S 40A JBD (ZP16S011) (246a)
- Battery Type: Lithium-ion / NMC
- Cell Configuration: 13S (48.1V nominal)
- Max Charging Voltage: ~54.6V (4.2V per cell)
- Continuous Discharge Current: 40A
- Charging Current: ~20A
- Cell Voltage Range: ~2.2V – 4.3V
- Balancing Type: Passive balancing
- Balance Current: ~25–30mA
- Port Type: Common port (charge & discharge same)
- Operating Temperature: -20°C to 70°C

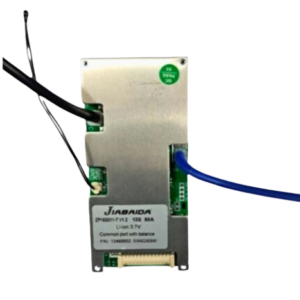

BMS NMC 13S 50A JBD (ZP16S011) (5ssa)
- Battery Type: Lithium-ion (NMC)
- Configuration: 13S (48V nominal / 54.6V full charge)
- Continuous Discharge Current: 50A
- Peak Discharge Current: ~70A (short duration)
- Charging Current: Up to 25A
- Overcharge Protection: ~4.25V/cell
- Over-discharge Protection: ~2.8V/cell
- Balancing Type: Passive balancing
- Balance Current: ~60–80mA
- Port Type: Common port (charge & discharge same)
- Operating Temperature: -20°C to +70°C

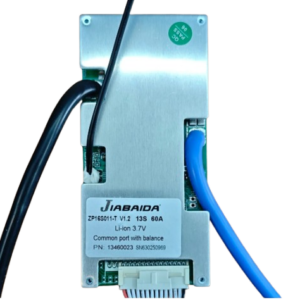

BMS NMC 13S 60A JBD (ZP16S011) (2442)
- Battery Type: Lithium-ion (NMC)
- Configuration: 13S (48.1V nominal / 54.6V full charge)
- Continuous Current: 60A (charge & discharge)
- Peak Current: ~80–100A (short duration)
- Charging Current: Up to 30A (recommended)
- Overcharge Protection: ~4.25V per cell
- Over-discharge Protection: ~2.8V per cell
- Balancing Type: Passive balancing
- Balance Current: ~60mA
- Internal Resistance: ≤15mΩ
- Idle Current: ≤60µA
- Port Type: Common port (same for charge & discharge)
- Operating Temperature: -20°C to +75°C

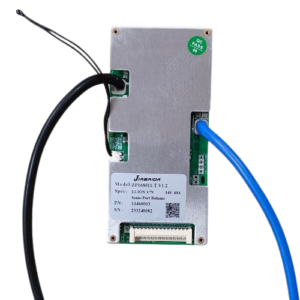

BMS NMC 14S 40A JBD (ZP16S011) (99gh)
- Brand: JBD (Jiabaida)
- Model: ZP16S011 / 99GH
- Battery Type: Lithium-ion (NMC / Li-ion)
- Cell Configuration: 14S (14 cells in series)
- Nominal Voltage: 51.8V (approx. 52V system)
- Max Charging Voltage: 58.8V (4.2V × 14)
- Continuous Discharge Current: 40A
- Peak Current: 80A–120A (short duration)
- Charge Current: 20A–40A
- Cell Voltage Range:
Overcharge Protection: ~4.20–4.25V
Over-discharge Protection: ~2.7–3.0V

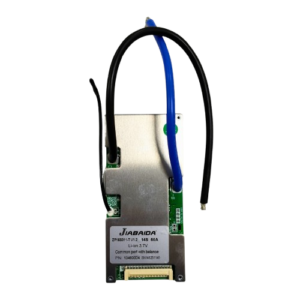

BMS NMC 14S 50A JBD (76b45)
- Brand: JBD (Jiabaida)
- Model: 76B45
- Battery Type: Lithium-ion (NMC / Li-ion)
- Configuration: 14S (14 cells in series)
- Nominal Voltage: 51.8V (52V system)
- Max Charging Voltage: 58.8V (4.2V × 14)
- Continuous Discharge Current: 50A
- Charge Current: Up to 50A
- Peak Current:
-
-
~60–65A (short delay)
-
Up to ~150A peak burst
-
