JBD BMS

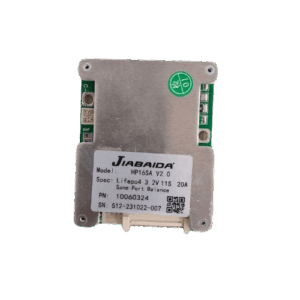

BMS LFP 11S 20A JBD (HP16SA) (9977)
- Supports 11S LiFePO4 battery configuration
- 20A continuous discharge current
- Nominal voltage: ~35.2V battery pack
- Passive cell balancing
- Over-charge & over-discharge protection
- Short circuit and over-current protection
- Temperature protection with NTC
- Low standby power consumption
- Optional UART / Bluetooth communication
- Compact and lightweight design

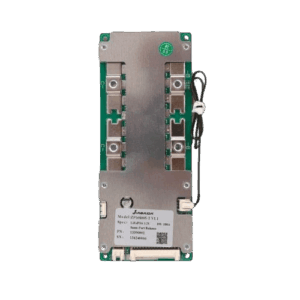

BMS LFP 15S 100A JBD (ZP16S005) (96m9)
- Supports 15S LiFePO4 battery configuration
- 100A continuous discharge current
- Nominal battery pack voltage: ~48V
- Passive cell balancing (~30 mA)
- Over-charge protection
- Over-discharge protection
- Over-current and short-circuit protection
- Temperature protection with NTC sensor
- Common port design (same charge & discharge port)
- Low standby current and high efficiency

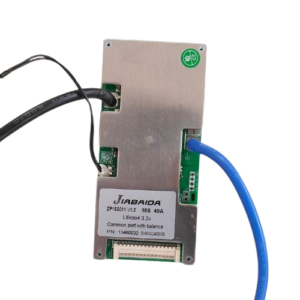

BMS LFP 15S 40A JBD (ZP16S011) (765a)
- Supports 15S LiFePO4 battery packs
- 40A continuous charge & discharge current
- Nominal battery voltage: ~48V
- Passive cell balancing (~30mA)
- Over-charge protection
- Over-discharge protection
- Over-current & short-circuit protection
- Temperature monitoring with NTC
- Low standby power consumption
- Common port (same charge & discharge port)

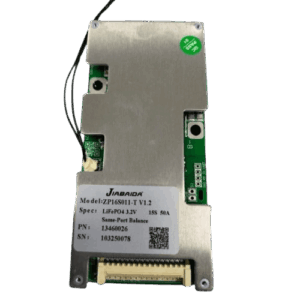

BMS LFP 15S 50A JBD (ZP16S011) (89st)
- Supports 15S LiFePO4 battery packs
- 50A continuous charge & discharge current
- Nominal pack voltage: ~48V
- Passive cell balancing (≈30–60 mA)
- Over-charge protection
- Over-discharge protection
- Over-current & short-circuit protection
- Temperature protection with NTC sensor
- Optional UART / RS485 / Bluetooth communication
- Common port design for charge & discharge

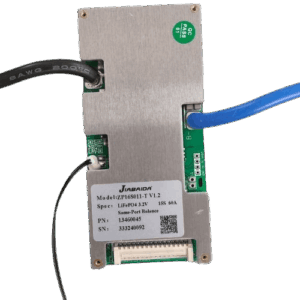

BMS LFP 15S 60A JBD (ZP16S011) (876l)
- Supports 15S LiFePO4 battery configuration
- 60A continuous charge & discharge current
- Nominal battery pack voltage: ~48V
- Passive cell balancing (~60 mA)
- Over-charge protection
- Over-discharge protection
- Over-current and short-circuit protection
- Temperature protection with NTC sensor
- Common port design (same charge & discharge port)
- Low standby current and compact design
BMS LFP 16S 100A JBD (ZP16S005) (80t9)
Key Specifications
| Parameter | Specification |
|---|---|
| Model | ZP16S005 (80T9) |
| Brand | JBD (Jiabaida) |
| Battery Type | LiFePO4 (LFP) |
| Cell Configuration | 16S |
| Nominal Voltage | 51.2V |
| Maximum Charge Voltage | 58.4V |
| Continuous Discharge Current | 100A |
| Recommended Charge Current | ≤50A |
| Balance Current | 30–60 mA |
| Balancing Type | Passive cell balancing |
| Communication | UART / RS485 / Bluetooth (optional) |
| Temperature Monitoring | NTC sensor support |
| Protection Features | Over-charge, Over-discharge, Over-current, Short circuit, Temperature protection |
| PCB Size | ~150 × 70 mm |
| Weight | ~135 g |
BMS LFP 16S 100A JBD (ZP20S006) (656i)
Key Specifications
| Parameter | Specification |
|---|---|
| Model | ZP20S006 (656I) |
| Brand | JBD (Jiabaida) |
| Battery Type | LiFePO4 (LFP) |
| Cell Configuration | 16S |
| Nominal Voltage | 51.2V |
| Maximum Charge Voltage | 58.4V (3.65V × 16) |
| Continuous Discharge Current | 100A |
| Peak Current | ~120A (short duration) |
| Balance Type | Passive balancing |
| Balance Current | ~30–60 mA |
| Port Type | Common Port (same charge & discharge) |
| Temperature Monitoring | NTC sensor support |
| Communication | UART / RS485 / Bluetooth (optional module) |
| Operating Temperature | –20°C to +75°C |
| Size | approx. 150 × 75 × 20 mm |
| Weight | ~150 g |

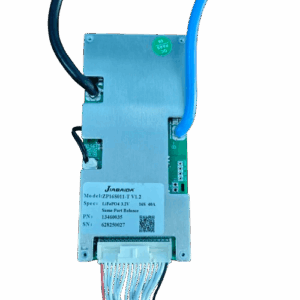

BMS LFP 16S 40A JBD (ZP16S011) (541b)
Key Specifications
| Parameter | Specification |
|---|---|
| Model | ZP16S011 (541B) |
| Battery Type | LiFePO4 (LFP) |
| Cell Configuration | 16S (16 cells in series) |
| Nominal Voltage | 51.2V |
| Max Charge Voltage | 58.4V (3.65V × 16 cells) |
| Continuous Discharge Current | 40A |
| Recommended Charge Current | 20–25A |
| Balance Current | 30–60 mA (Passive Balancing) |
| Discharge Cut-off Voltage | ~40V (2.5V per cell) |
| Port Type | Common Port (charge & discharge same port) |
| Communication | UART / RS485 (optional module) |
| Temperature Monitoring | NTC sensor support |
| Protection Functions | Overcharge, Over-discharge, Over-current, Short circuit, Over-temperature |
| Operating Temperature | –20°C to +75°C |
| Dimensions | ~130 × 60 × 12 mm |
| Weight | ~100–110 g |

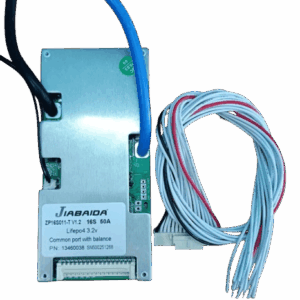

BMS LFP 16S 50A JBD (ZP16S011) (8811)
Key Specifications
| Parameter | Specification |
|---|---|
| Model | ZP16S011 (8811) |
| Brand | JBD (Jiabaida) |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Cell Configuration | 16S |
| Nominal Battery Voltage | 51.2V |
| Maximum Charge Voltage | 58.4V (3.65V × 16 cells) |
| Continuous Discharge Current | 50A |
| Recommended Charge Current | ≤ 30A |
| Balancing Type | Passive balancing |
| Balance Current | 30–60 mA |
| Temperature Monitoring | NTC sensor support |
| Communication Interface | UART / RS485 (optional module) |
| Protection Features | Over-charge, Over-discharge, Over-current, Short circuit, Over-temperature |
| PCB Size | ~130 × 60 mm |
| Weight | ~110 g |

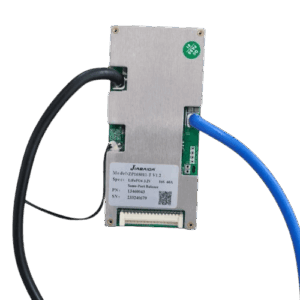

BMS LFP 16S 60A JBD (ZP16S011) (18a8)
Key Specifications
| Parameter | Specification |
|---|---|
| Model | ZP16S011 (18A8) |
| Brand | Jiabaida (JBD) |
| Battery Type | LiFePO4 (LFP) |
| Cell Configuration | 16S (16 cells in series) |
| Nominal Battery Voltage | 51.2V |
| Max Charge Voltage | 58.4V (3.65V × 16 cells) |
| Continuous Discharge Current | 60A |
| Recommended Charge Current | ≤30A |
| Balance Type | Passive Cell Balancing |
| Balance Current | 30–60 mA |
| Port Type | Common Port (same charge & discharge port) |
| Temperature Sensor | NTC supported |
| Communication | UART / RS485 / Bluetooth (optional module) |
| PCB Size | ~130 × 60 mm |
| Weight | ~110–115 g |
| Operating Temperature | –20°C to +75°C |

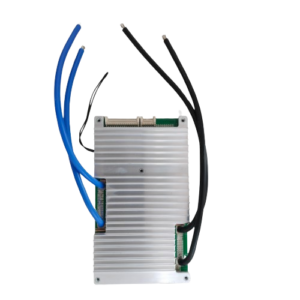

BMS LFP 19S 100A JBD (ZP20S006) (32s3)
-
Brand: JBD (Jiabaida)
-
Model: ZP20S006
-
Battery Type: LiFePO4 (LFP)
-
Series Support: 19S
-
Nominal Voltage: 60.8V
-
Continuous Discharge Current: 100A
-
Peak Current: Up to 120A (short duration)
-
Balancing Type: Passive cell balancing
-
Port Type: Common port (charge & discharge)
BMS LFP 19S 100A JBD (ZP20S006) (99v9)
Key Specifications
| Parameter | Specification |
|---|---|
| Model | ZP20S007 (68R1) |
| Brand | JBD (Jiabaida) |
| Battery Type | LiFePO4 |
| Cell Configuration | 19S |
| Nominal Voltage | 60.8V |
| Maximum Charge Voltage | 68.4V |
| Continuous Discharge Current | 60A |
| Recommended Charge Current | 30–40A |
| Balancing Type | Passive balancing |
| Balance Current | ~60 mA |
| Port Type | Common port (charge & discharge same) |
| Communication | UART / RS485 / Bluetooth (optional) |
| Temperature Sensors | Dual NTC |
| Operating Temperature | −20°C to +70°C |
| Dimensions | ~160 × 80 mm |
| Weight | ~240 g |

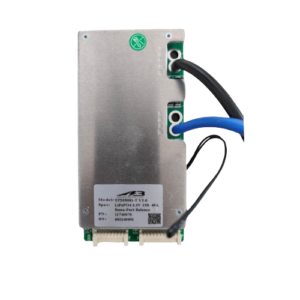

BMS LFP 19S 40A JBD (ZP20S007) (3112q)
- Model: ZP20S007
- Battery Type: LiFePO4 (3.2 V cells)
- Series Cells: 19S
- Nominal Pack Voltage: ~60.8 V
- Max Charge Voltage: ~68.4 V (3.6 V × 19)
- Continuous Discharge Current: 40 A
- Recommended Charge Current: up to 20 A
- Balancing Current: ~30–60 mA
- Operating Temperature: −20 °C to +70 °C
BMS LFP 19S 40A JBD (ZP20S007) (978m)
Key Specifications
| Parameter | Specification |
|---|---|
| Model | ZP20S007 (978M) |
| Brand | JBD (Jiabaida) |
| Battery Type | LiFePO4 (LFP) |
| Cell Configuration | 19S |
| Nominal Voltage | ~60.8V |
| Maximum Charge Voltage | ~68.4–69.3V |
| Continuous Discharge Current | 40A |
| Recommended Charge Current | ≤20A |
| Balance Current | ~30–60 mA |
| Balancing Type | Passive balancing |
| Communication | UART / RS485 / Bluetooth (optional) |
| Temperature Monitoring | NTC sensor support |
| Operating Temperature | −20°C to +70°C |
| Dimensions | approx. 120–140 × 65–70 mm |
| Weight | ~140 g |

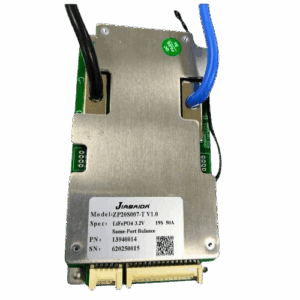

BMS LFP 19S 50A JBD (ZP20S007) (834j)
Key Specifications
| Parameter | Specification |
|---|---|
| Model | ZP20S007 (834J) |
| Brand | JBD (Jiabaida) |
| Battery Type | LiFePO4 (LFP) |
| Cell Configuration | 19S |
| Nominal Voltage | 60.8V |
| Maximum Charge Voltage | 68.4V |
| Continuous Discharge Current | 50A |
| Recommended Charge Current | 30–40A |
| Balancing Type | Passive balancing |
| Balance Current | ~60 mA |
| Port Type | Common port (same charge & discharge) |
| Temperature Sensors | NTC supported |
| Communication | UART / RS485 / Bluetooth (optional) |
| Operating Temperature | −20°C to +70°C |
| Size | ~160 × 80 mm |
| Weight | ~220 g |

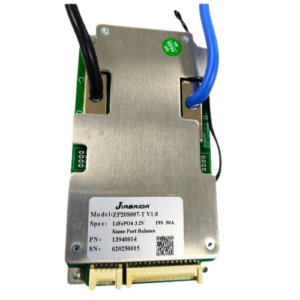

BMS LFP 19S 50A JBD (ZP20S007) (989n)
- Brand: JBD (Jiabaida)
- Model: ZP20S007
- Battery type: LiFePO4 (3.2 V cells)
- Series configuration: 19S
- Nominal pack voltage: 60.8 V
- Maximum charge voltage: 68.4 V
- Continuous discharge current: 50 A
- Recommended charge current: 30–40 A
- Balancing current: about 60 mA per cell
- Temperature sensors: NTC included
- Size: about 160 × 80 mm
- Port type: Common port (same port for charge and discharge)

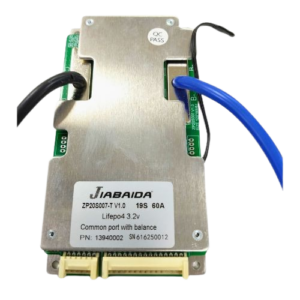

BMS LFP 19S 60A JBD (ZP20S007) (22s2)
- Brand: JBD (Jiabaida)
- Model: ZP20S007
- Battery Type: LiFePO4
- Series Support: 19S
- Nominal Voltage: 60.8V
- Max Charge Voltage: 68.4V
- Continuous Discharge Current: 60A
- Recommended Charge Current: 30–40A
- Balancing Current: ≥60mA per cell
- Communication: UART / RS485 / Optional Bluetooth
- Temperature Sensors: Dual NTC

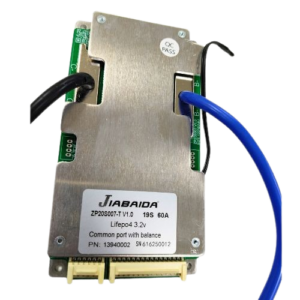

BMS LFP 19S 60A JBD (ZP20S007) (68r1)
Key Specifications
| Parameter | Specification |
|---|---|
| Model | ZP20S007 (68R1) |
| Brand | JBD (Jiabaida) |
| Battery Type | LiFePO4 |
| Cell Configuration | 19S |
| Nominal Voltage | 60.8V |
| Maximum Charge Voltage | 68.4V |
| Continuous Discharge Current | 60A |
| Recommended Charge Current | 30–40A |
| Balancing Type | Passive balancing |
| Balance Current | ~60 mA |
| Port Type | Common port (charge & discharge same) |
| Communication | UART / RS485 / Bluetooth (optional) |
| Temperature Sensors | Dual NTC |
| Operating Temperature | −20°C to +70°C |
| Dimensions | ~160 × 80 mm |
| Weight | ~240 g |
BMS LFP 20S 100A JBD (ZP20S006) (g1h2)
- Battery Type: LiFePO4 (LFP)
- Series: 20S
- Nominal Voltage: ~64V
- Max Charging Voltage: ~73V–84V
- Continuous Current: 100A
- Peak Current: ~200A (short duration)
- Balancing Current: ~50–100mA
- Operating Temperature: -20°C to +70°C
- Ports: Common Port
- Protection: OVP, UVP, OCP, SCP, Temperature

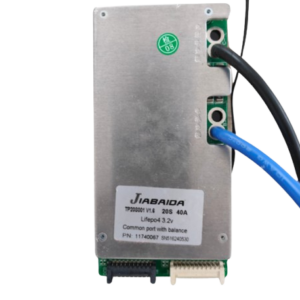

BMS LFP 20S 40A JBD (ZP20S007) (456s)
- Brand: JBD (Jiabaida)
- Model: ZP20S007
- Battery Type: LiFePO4 (LFP)
- Cell Configuration: 20S (20 cells in series)
- Nominal Voltage: ~64V
- Max Charge Voltage: ~73V
- Continuous Charge/Discharge Current: 40A
- Recommended Charge Current: up to 20A
- Balancing Type: Passive balancing
- Balancing Current: ~30–60 mA
- Port Type: Common port (charge & discharge same port)

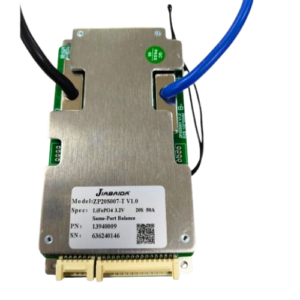

BMS LFP 20S 50A JBD (ZP20S007) (963s)
- Brand: JBD (Jiabaida)
- Model: ZP20S007
- Battery Type: LiFePO4 (LFP)
- Cell Configuration: 20S (20 cells in series)
- Nominal Voltage: ~64V
- Continuous Discharge Current: 50A
- Balancing Type: Passive balancing
- Balancing Current: ~60mA
- Over-charge Protection: ~4.25V per cell
- Over-discharge Cutoff: ~2.8V per cell
- Internal Resistance: ≤15 mΩ
- Static Power Consumption: ≤60µA
- Operating Temperature: −20°C to +75°C
- Port Type: Common port (charge & discharge same port)
BMS LFP 20S 60A JBD (ZP20S007) (432i)
- Battery Type: LiFePO4 (LFP)
- Series: 20S
- Nominal Voltage: ~64V
- Max Charge Voltage: ~73V–84V (depending config)
- Continuous Current: 60A
- Balancing Current: ~60mA
- Operating Temperature: -20°C to +70°C
- Protection Functions: OVP, UVP, SCP, OCP, Temperature

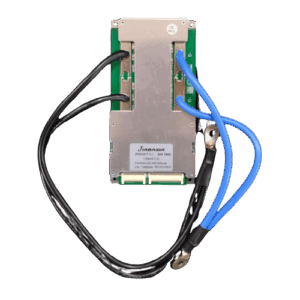

BMS LFP 23S 100A JBD (ZP24SA01) (16i7)
- Battery Type: LiFePO4 (LFP)
- Series: 23S
- Nominal Voltage: ~73.6V
- Max Charging Voltage: ~83.9V
- Continuous Current: 100A
- Peak Current: ~200A (short duration)
- Balancing Current: ~50–100mA
- Operating Temperature: -20°C to +70°C
- Port Type: Common Port
- Communication: UART / RS485 / CAN / Bluetooth
- Protection: OVP, UVP, OCP, SCP, Temperature

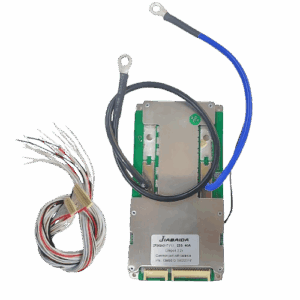

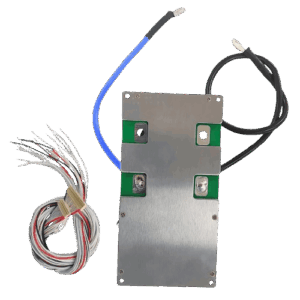

BMS LFP 23S 40A JBD (ZP24SA01) (5544)
- Battery Type: LiFePO4 (LFP)
- Series: 23S
- Nominal Voltage: ~73.6V
- Max Charging Voltage: ~83.9V
- Continuous Current: 40A
- Peak Current: ~80–120A (short duration)
- Balancing Current: ~30–60mA
- Operating Temperature: -20°C to +70°C
- Port Type: Common Port
- Protection: OVP, UVP, OCP, SCP, Temperature

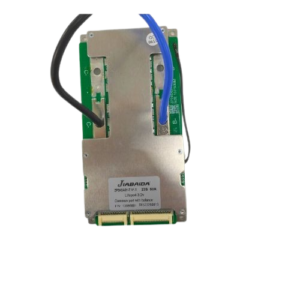

BMS LFP 23S 50A JBD (ZP24SA01) (55ii)
- Battery Type: LiFePO4 (LFP)
- Series: 23S
- Nominal Voltage: ~73.6V
- Max Charging Voltage: ~83.9V
- Continuous Current: 50A
- Peak Current: ~100–150A (short duration)
- Balancing Current: ~40–80mA
- Operating Temperature: -20°C to +70°C
- Port Type: Common Port
- Protection: OVP, UVP, OCP, SCP, Temperature

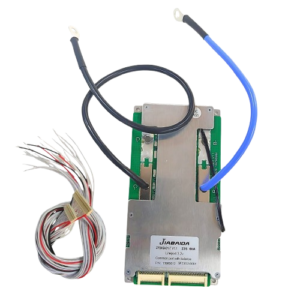

BMS LFP 23S 60A JBD (ZP24SA01) (12i3)
- Battery Type: LiFePO4 (LFP)
- Series: 23S
- Nominal Voltage: ~73.6V
- Max Charging Voltage: ~82.8V–83.9V
- Continuous Current: 60A
- Peak Current: ~120–180A (short duration)
- Balancing Current: ~40–80mA
- Internal Resistance: ≤20mΩ
- Operating Temperature: -20°C to +70°C
- Port Type: Common Port
- Protection: OVP, UVP, OCP, SCP, Temperature
BMS LFP 32S 100A JBD (HP32S001) (765k)
- Battery Type: LiFePO4 (LFP)
- Series: 32S
- Nominal Voltage: ~102.4V
- Max Charging Voltage: ~116.8V
- Continuous Current: 100A
- Peak Current: ~150–200A
- Balancing: Passive balancing supported
- Size: ~180 × 130 × 18 mm
- Operating Temperature: -20°C to +70°C
- Port Type: Common Port
- Protection: OVP, UVP, OCP, SCP, Temperature

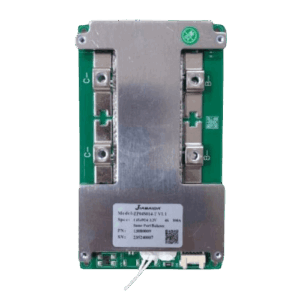

BMS LFP 4S 100A JBD (ZP04S014) (99ef)
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Series Configuration: 4 Series (4S)
- Interface Type: (Charge and discharge are both at the same port)
- Charging Voltage: 3.6V(3.6VxNumber of strings)
- Continuous Charging Current: 100A
- Continuous Discharging Current: 100A
- Cell voltage range: 2.20~3.75V
- Consumption: ≤150uA
- Circuit resistance: ≤10mR
- Operating Temperature Range: -20°C~75°C
- Size: 144x85x10mm
