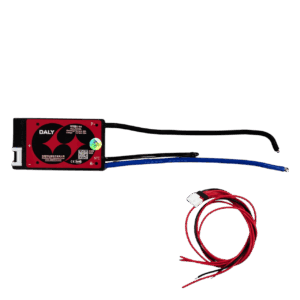

BMS NMC 4S 20A DALY (11a5s)
| Specification | Details |
|---|---|
| Brand | Daly |
| Model | 11A5S |
| Battery Type | Lithium-ion (NMC) |
| Cell Configuration | 4S (4 cells series) |
| Nominal Voltage | 14.8V |
| Full Charge Voltage | 16.8V |
| Continuous Discharge Current | 20A |
| Recommended Charge Current | 10-20A |
| Balancing Current | ~30-50 mA |
| Over-charge Protection | ~4.25V per cell |
| Over-discharge Protection | ~2.7-2.9V per cell |
| Short-circuit Protection | Yes |
| Operating Temperature | −20°C to +60°C |

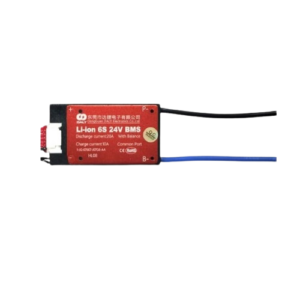

BMS NMC 6S 10A DALY (53s3)
- Brand: Daly
- Product Name: Daly BMS NMC 6S 10A Waterproof
- Model: J13G3 -Battery Type: Lithium-ion (NMC)
- Series Configuration: 6S (6 cells in series)
- Discharge Current: 10A
- Charge Current: 10A
- Overcharge Detection: 4.25V ± 0.05V
- Over-discharge Detection: 2.80V ± 0.05V
- Waterproof Rating: IP67 (Dust and Water Resistant)
- Operating Temperature: -20°C to 60°C
- Dimensions: Compact for easy installation
- Applications: EVs, Solar Storage, Power Tools

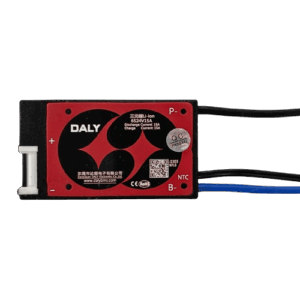

BMS NMC 6S 15A DALY (s5a5)
| Specification | Details |
|---|---|
| Brand | Daly |
| Battery Type | Lithium-ion NMC |
| Series Configuration | 6S (6 cells in series) |
| Nominal Voltage | 22.2V |
| Full Charge Voltage | 25.2V |
| Continuous Discharge Current | 15A |
| Charge Current | Up to 15A |
| Over-charge Protection | ~4.25V ±0.05V per cell |
| Over-discharge Protection | ~2.8V ±0.05V per cell |
| Short-circuit Protection | Yes |
| Temperature Protection | Yes |
| Waterproof Rating | IP67 |
| Operating Temperature | −20°C to 60°C |

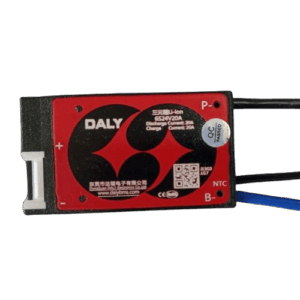

BMS NMC 6S 20A DALY (13r5)
- Brand: Daly
- Product Name: Daly BMS NMC 6S 20A Waterproof
- Model: J13G3 -Battery Type: Lithium-ion (NMC)
- Series Configuration: 6S (6 cells in series)
- Discharge Current: 20A
- Charge Current: 20A
- Overcharge Detection: 4.25V ± 0.05V
- Over-discharge Detection: 2.80V ± 0.05V
- Waterproof Rating: IP67 (Dust and Water Resistant)
- Operating Temperature: -20°C to 60°C
- Dimensions: Compact for easy installation
- Applications: EVs, Solar Storage, Power Tool

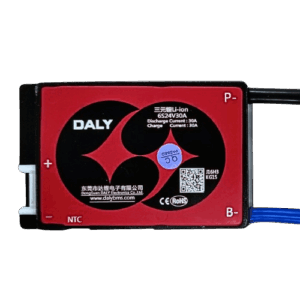

BMS NMC 6S 30A DALY (35cr)
- Brand: Daly
- Product Name: Daly BMS NMC 6S 30A Waterproof
- Model: J16H3 -Battery Type: Lithium-ion (NMC)
- Series Configuration: 6S (6 cells in series)
- Discharge Current: 30A
- Charge Current: 30A
- Overcharge Detection: 4.25V ± 0.05V
- Over-discharge Detection: 2.80V ± 0.05V
- Waterproof Rating: IP67 (Dust and Water Resistant)
- Operating Temperature: -20°C to 60°C
- Dimensions: Compact for easy installation
- Applications: EVs, Solar Storage, Power Tools

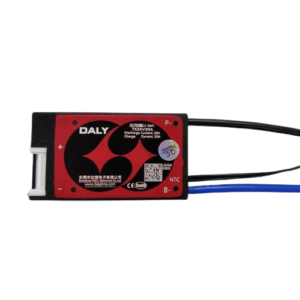

BMS NMC 7S 20A DALY (785a)
- Brand Daly
- Model J13G3
- Product Name Daly BMS NMC 7S 20A Waterproof
- Battery Type Lithium-ion (NMC)
- Series Configuration 7S (7 cells in series)
- Discharge Current 20A
- Charge Current 20A
- Overcharge Detection 4.25V ± 0.05V
- Over-discharge Detection 2.80V ± 0.05V
- Waterproof Rating IP67 (Dust and Water Resistant)
- Operating Temperature -20°C to 60°C
- Dimensions Compact for easy integration
- Applications EVs, Solar Storage, Power Tools
